  • Oilite bushed throttle pedal

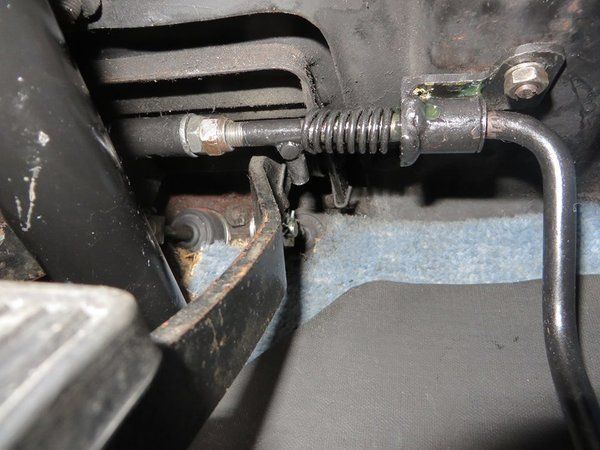

    The original pedal pivot idea is shite beyond believe and this one was royally borked giving a very clunky pedal movement .
    Ive found some perfect fitting top hat oilite bushes the correct size internally and externally and have worked out a way to mount them - cable end is easy but the spring end less so .

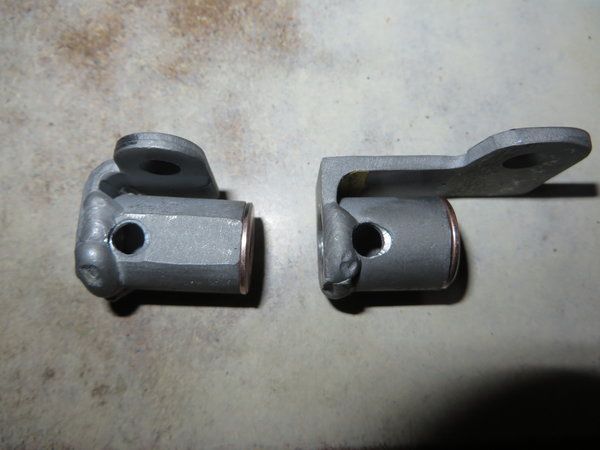

    First I made up two mounts for the bushes , holes are for oil
    Click image for larger version

Name:	IMG_8071.jpg
Views:	151
Size:	33.3 KB
ID:	3885

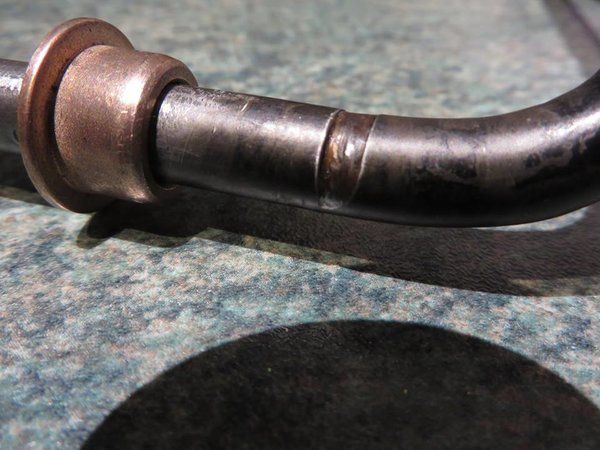

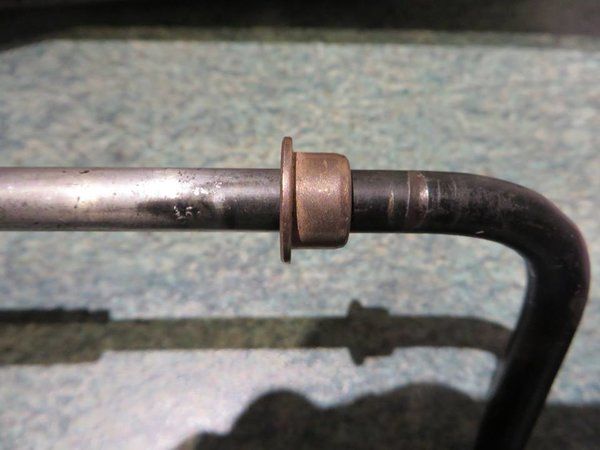

    You can see the wear groove in the original set up along with a trial fit of said bush
    Click image for larger version

Name:	15095498_10211246678502421_3541828271681044108_n.jpg
Views:	101
Size:	33.5 KB
ID:	3886
    Click image for larger version

Name:	15036614_10211246679662450_1982681850251404796_n.jpg
Views:	110
Size:	51.0 KB
ID:	3887

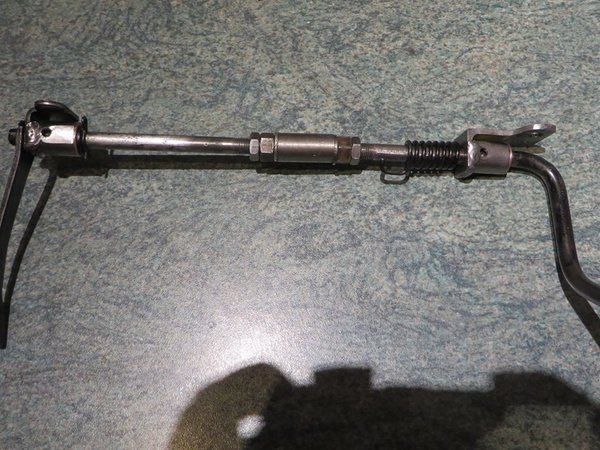

    I cut the pedal in half , made up a threaded sleeve , thread is 3/8UNF and is perfect for the pedal shaft size , Use two thin inner nuts and two all metal driveshaft coupling nuts and locked it solid
    Click image for larger version

Name:	15027439_10211254307133132_4014296131418430891_n.jpg
Views:	104
Size:	71.4 KB
ID:	3888

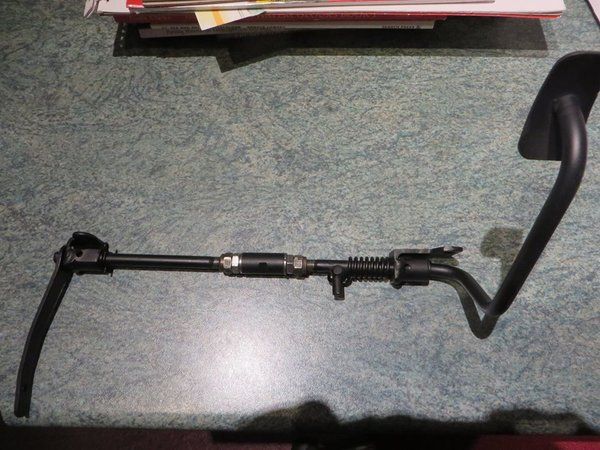

    Next was weld a spring stop on it . Apparently its better to have the thinner nuts inside so swapped these over , also cut a spanner slot for the sleeve , i used thread lock as well as the double nuts .

    Click image for larger version

Name:	15055774_10211263156034349_8572773491006795110_n.jpg
Views:	101
Size:	63.7 KB
ID:	3889

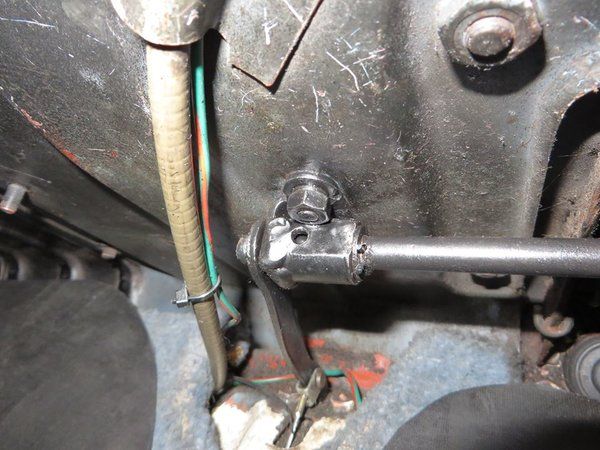

    Then fit it in , small hole , brass washer and a split pin keeps it from moving as in the original set up
    Click image for larger version

Name:	15085508_10211272481467479_179585966104536962_n.jpg
Views:	101
Size:	60.1 KB
ID:	3890
    Click image for larger version

Name:	15107236_10211272481147471_158171191843852255_n.jpg
Views:	101
Size:	51.3 KB
ID:	3891
    You can easily alter the pedal angle by loosening the nuts but i kept this standard . Its been fitted since Nov 2016 and still feels super smooth - one of the best things i did in fact . you could use needle rollers instead of bushes and i guess theres a few ways of doing this so have a think and a play . Both of my cars have this set up

  • #2
    I am still temnpted by this as I need to cut/weld the throttle pedal anyway to make it fit. Thanks for this Dave, another golden gem out in the open
    / John

    If it can be fixed with a hammer, I am your man
