    Time for some car work or at least a few hours inbetween paperwork while waiting for paint crap and stuff to dry.

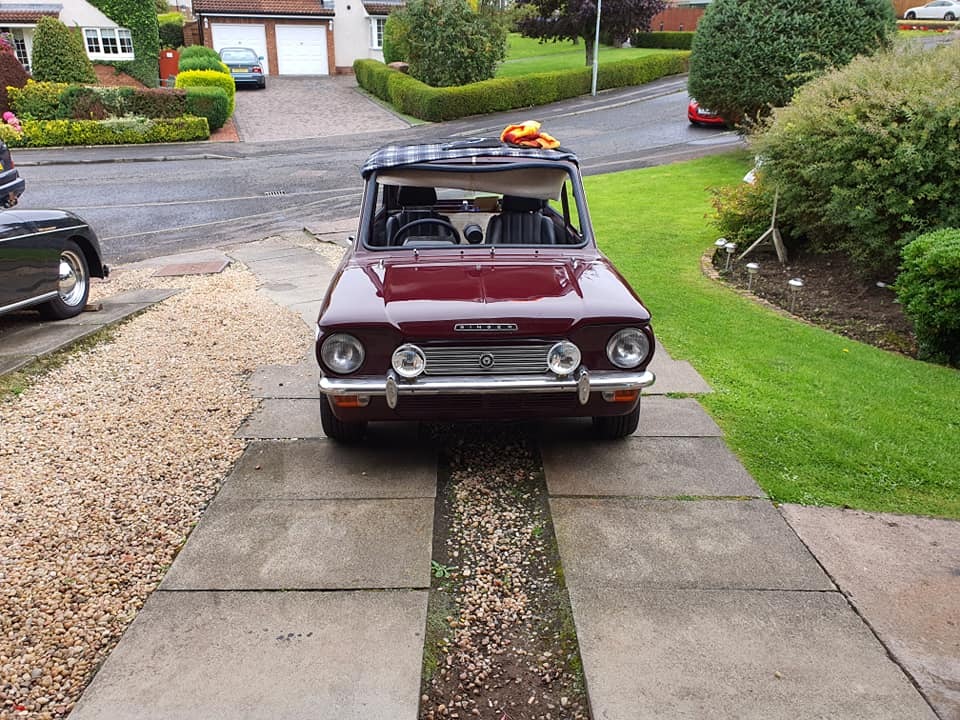

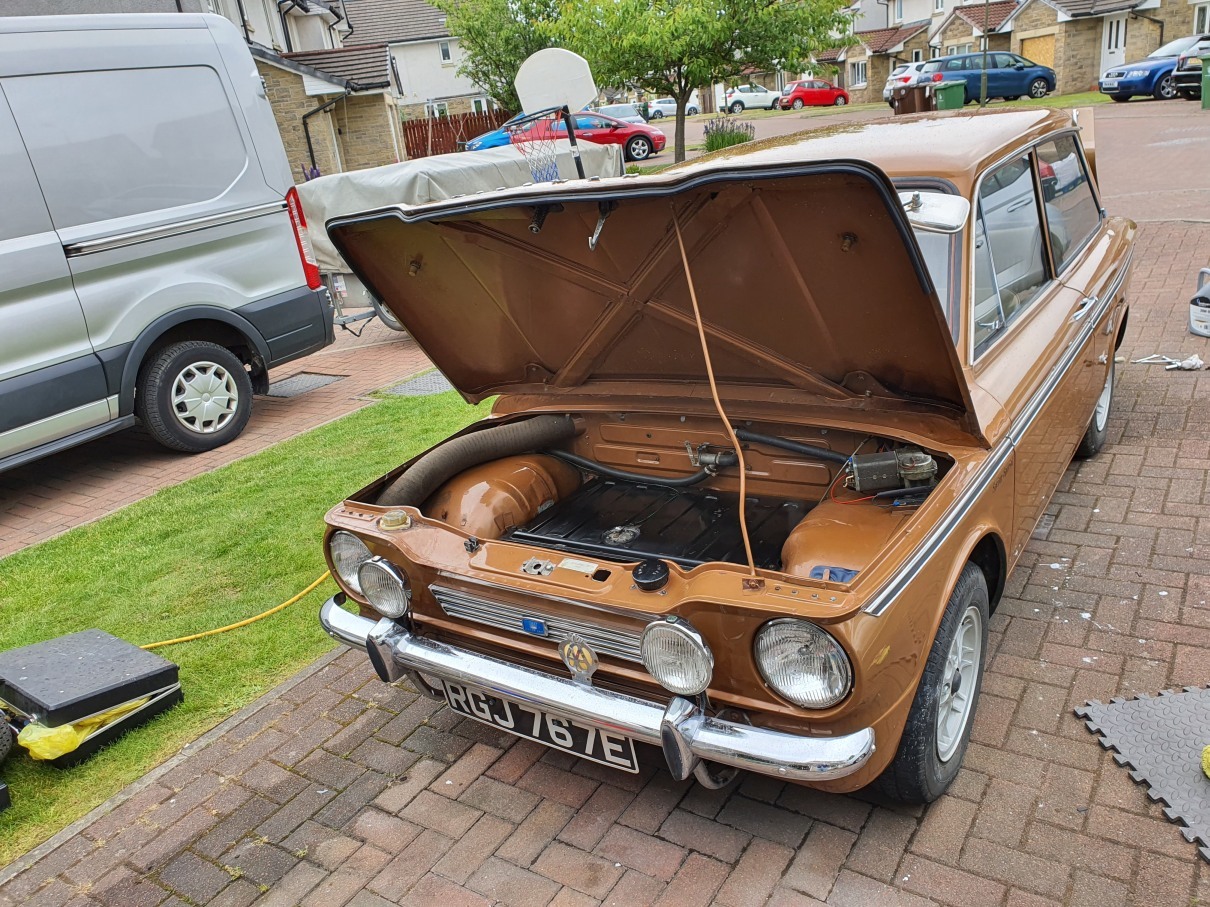

    On Boris the spotlights were added on top of the US style "spring special" bumpers and i suspect this was not standard. It seems to have been the same since Mike Hannas ownership so likely he did the mods.

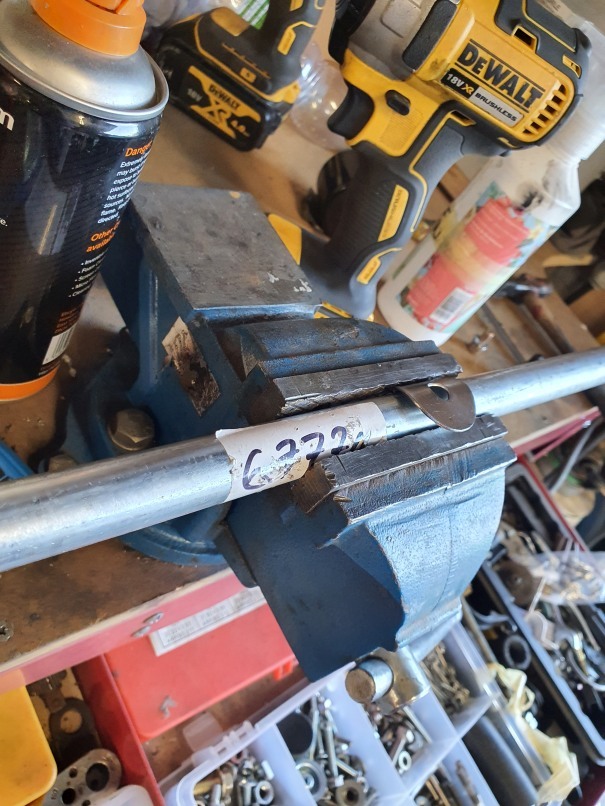

    So it begns, some 20mm galvanised steel conduit

    Click image for larger version  Name:	20201024_152825.jpg Views:	0 Size:	158.5 KB ID:	10885

    These will be painted matt black or body coloured, as yet undecided.

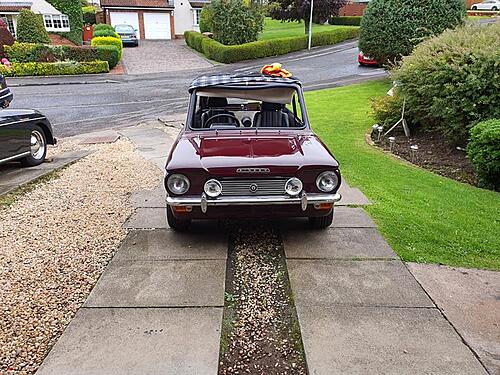

    Anyway, thses sit very well positioned and look tidy on the front just peeking above the over-rdiers.

    Click image for larger version  Name:	20200602_162500.jpg Views:	0 Size:	410.4 KB ID:	10884

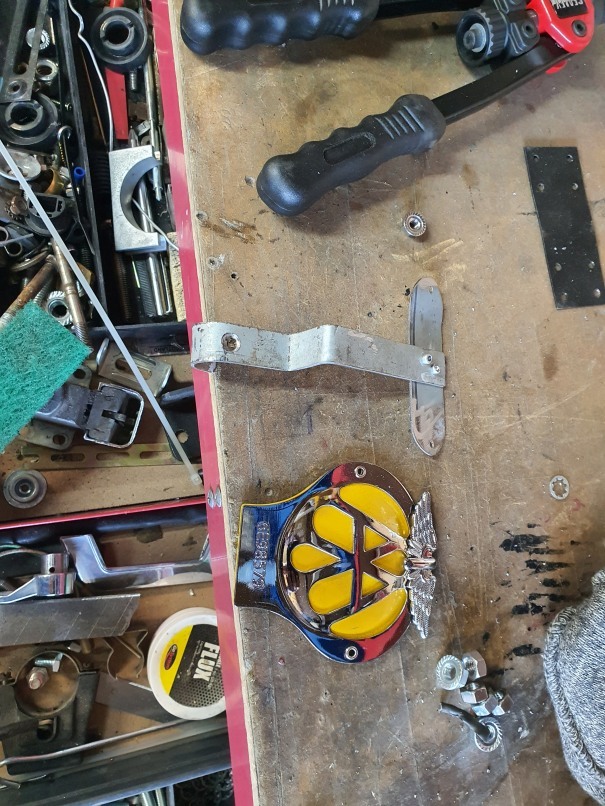

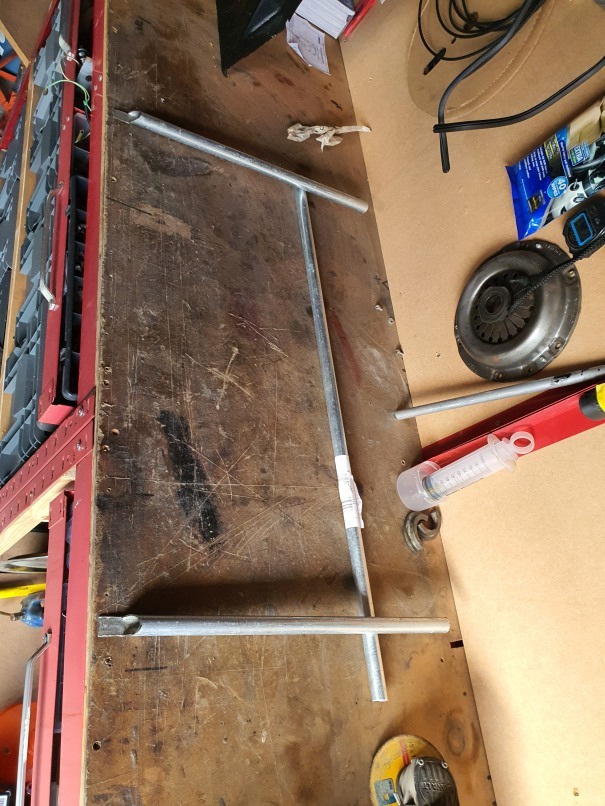

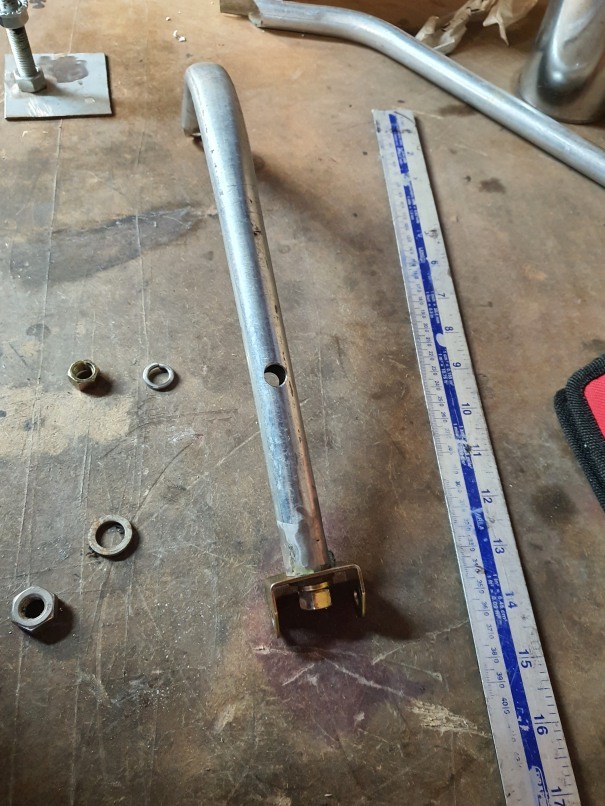

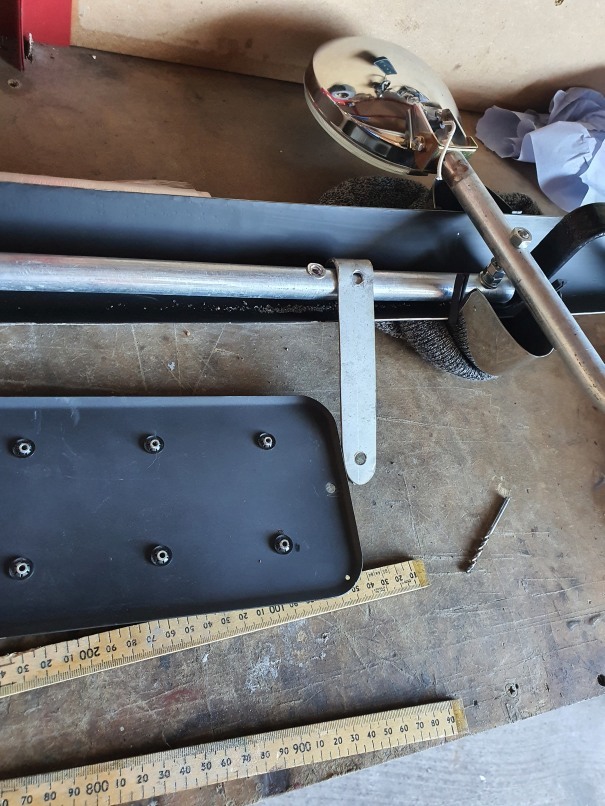

    3 lengths cut, one will span the underside of the bumper, that will double as the badge holder above the bumper AND the number plate support under the bumper. Will add details of those later

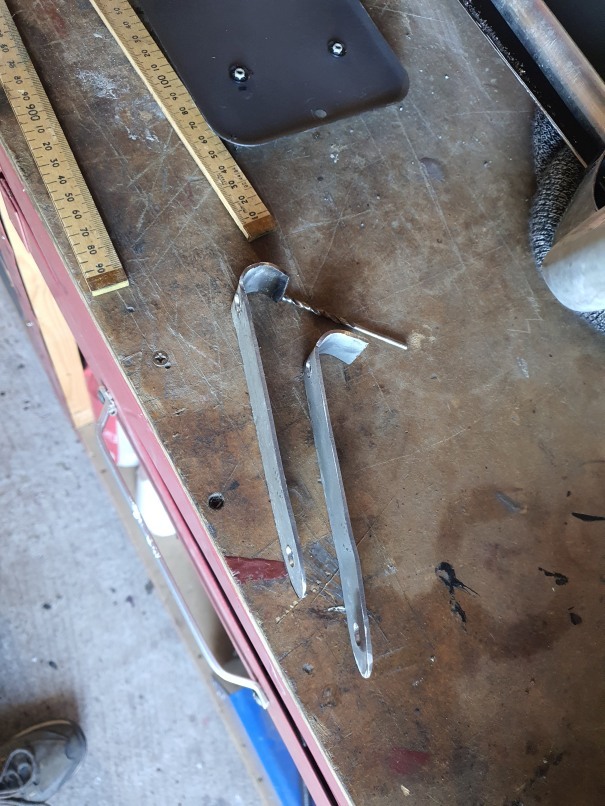

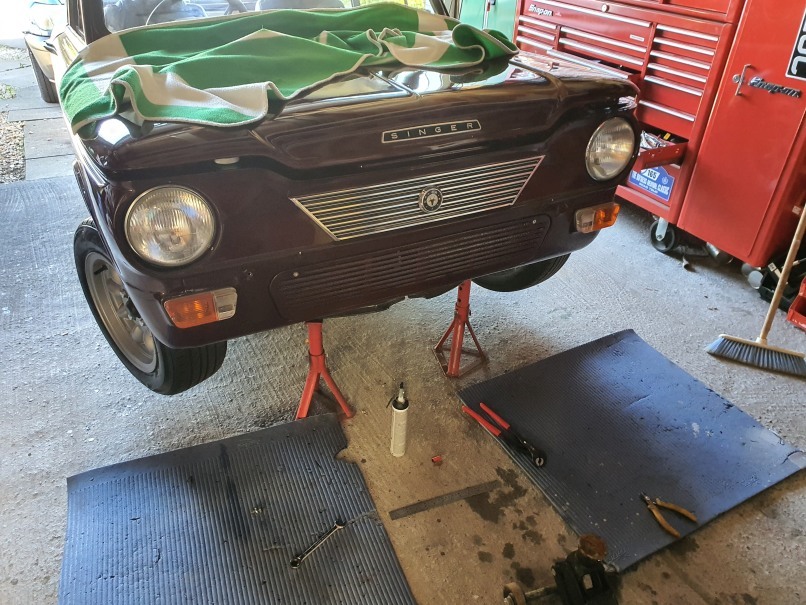

    The other two have a chamfer cut in and a flat added, this will attach to the lower valance, not doing the nut/bolt, that will be a stainless rivnut and for some, the dreaded some epoxy

    Click image for larger version  Name:	20201024_152836.jpg Views:	0 Size:	132.7 KB ID:	10886

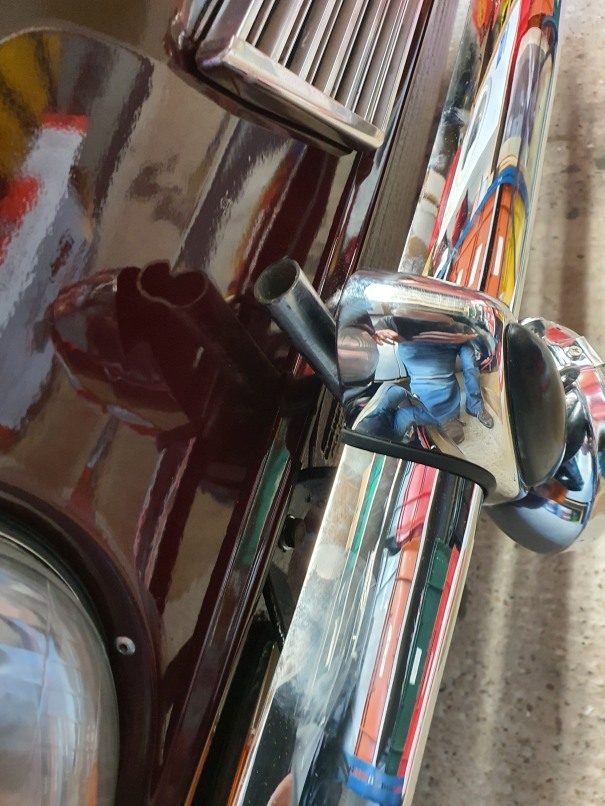

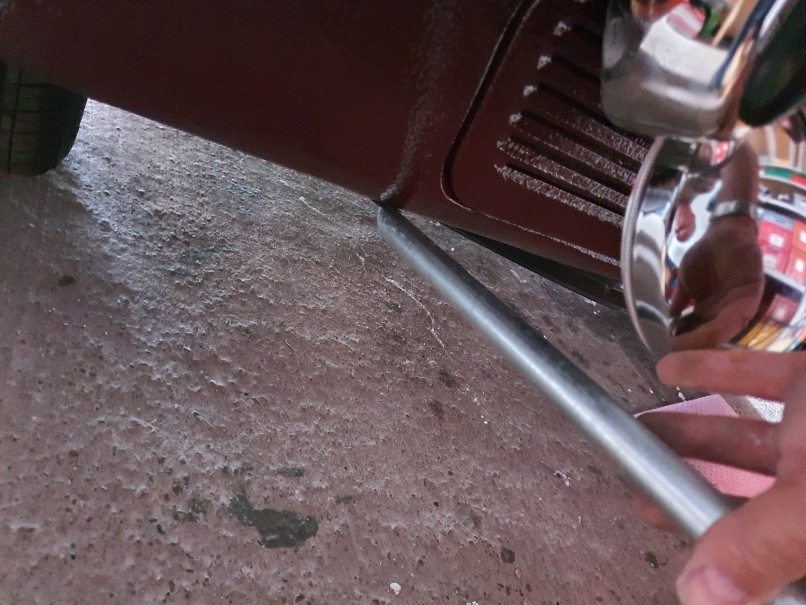

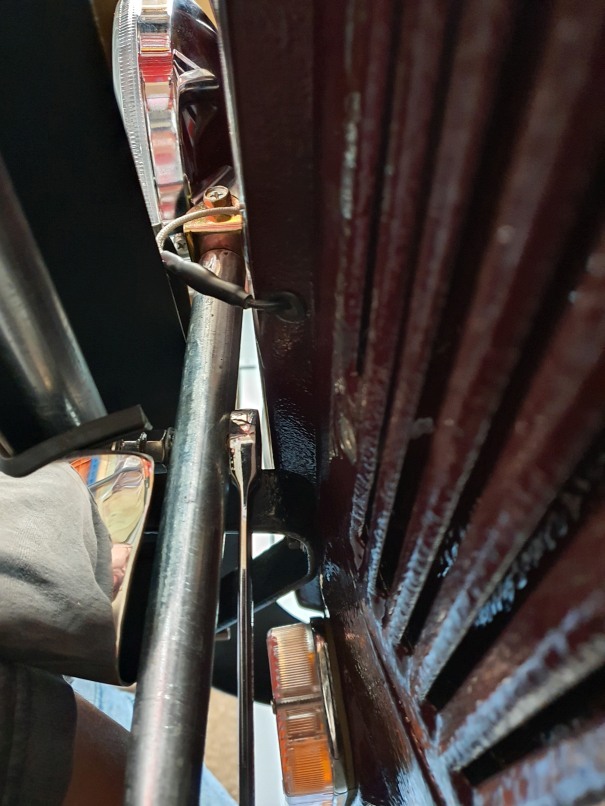

    Using a spacer betwen the rear of the over rider to stop it crushing when tightened up, have the round tube sit into the "round" of the back of the bumper iron and bolt that lot up secure.

    Click image for larger version  Name:	20201026_154846.jpg Views:	0 Size:	155.0 KB ID:	10887

    The "upright" is then added so the top just peeks at the back of the over rider and no more.

    Click image for larger version

Name:	20201026_154822.jpg
Views:	86
Size:	136.3 KB
ID:	10903

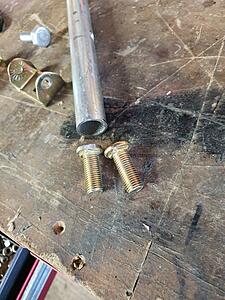

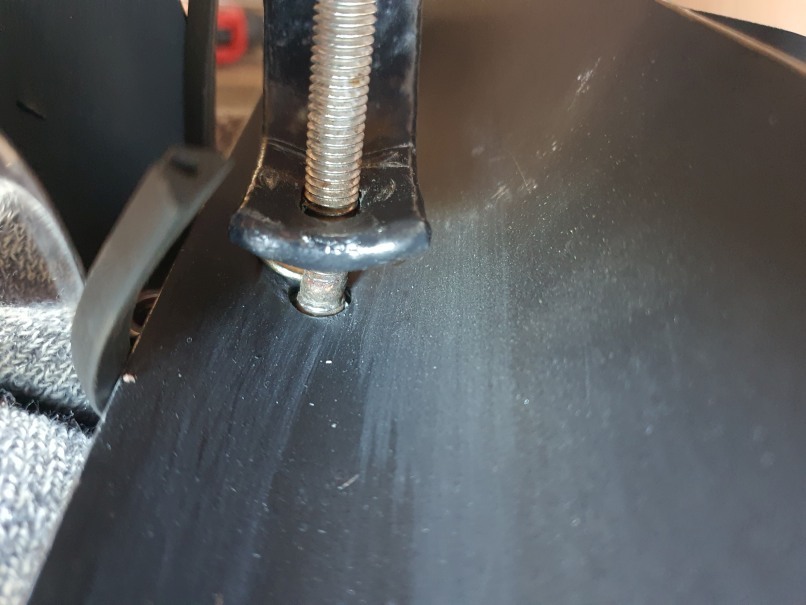

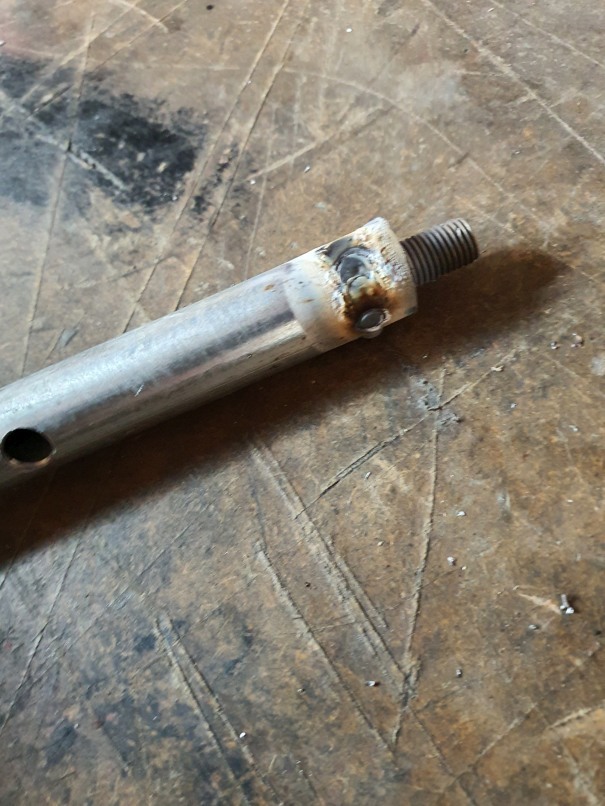

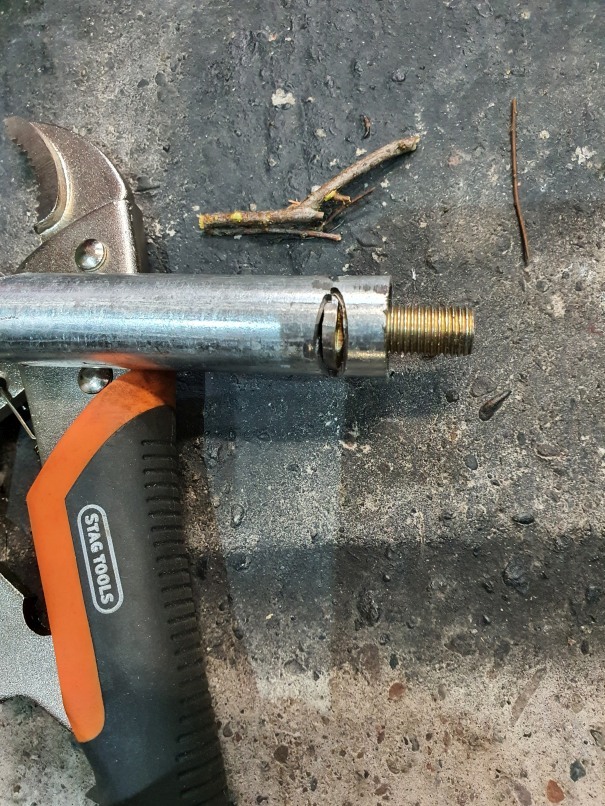

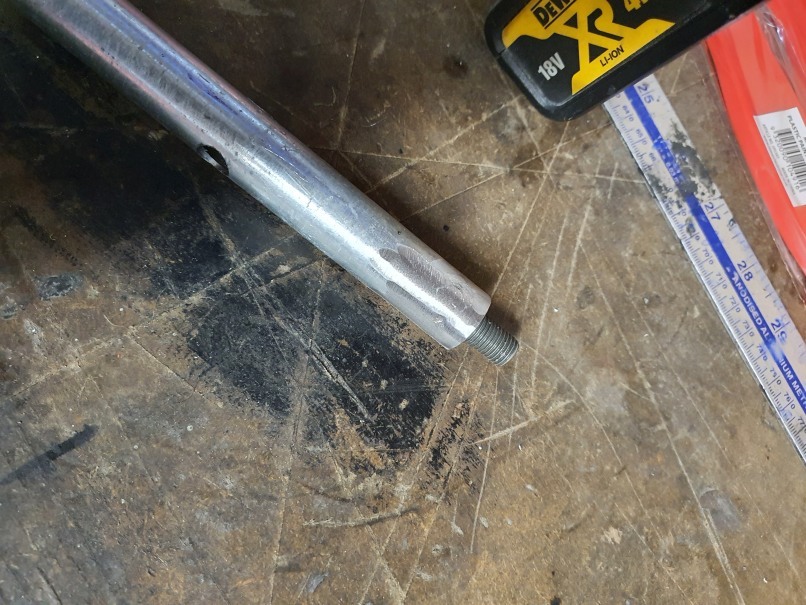

    The top of the "upright" will then be trimmed and a bolt dropped inside the top, which will have 2 slits cut in it and then welded in, it is weled in down the tube in case some fine tuning is needed to the height as I am fussy

    Click image for larger version  Name:	20201026_165309.jpg Views:	0 Size:	144.0 KB ID:	10891


    Click image for larger version  Name:	20201026_161429.jpg Views:	0 Size:	164.6 KB ID:	10899

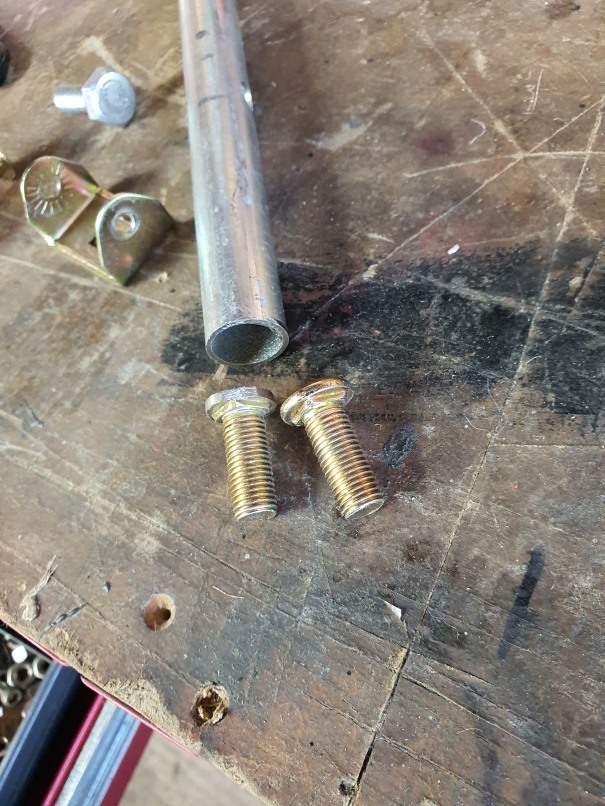

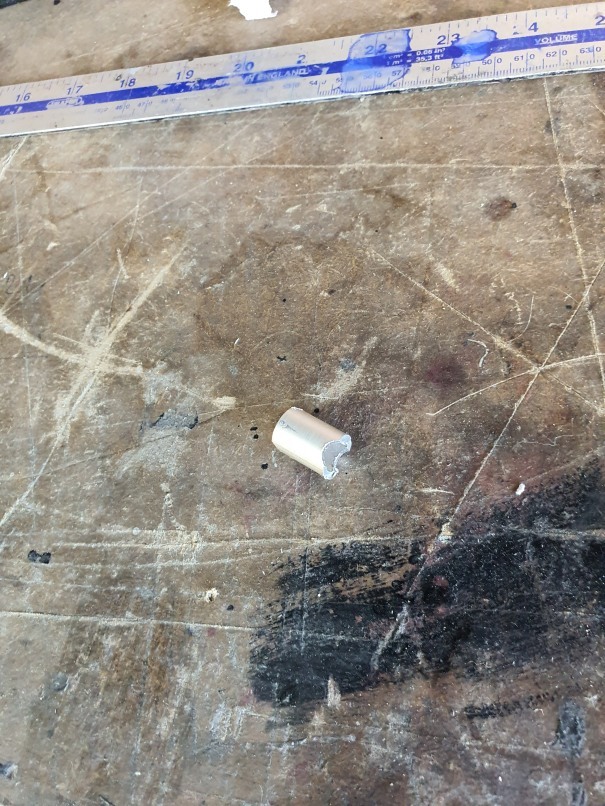

    I was making one of tghese for the spacer betwen the horizontal bar and the upright bar however this turned out to be a serious pain in the backside and thus dubbed, good idea, failure


    Click image for larger version  Name:	20201026_155445.jpg Views:	0 Size:	188.0 KB ID:	10893

    So i ended up adding some nuts in instead.

    Click image for larger version  Name:	20201026_170129.jpg Views:	0 Size:	106.6 KB ID:	10894

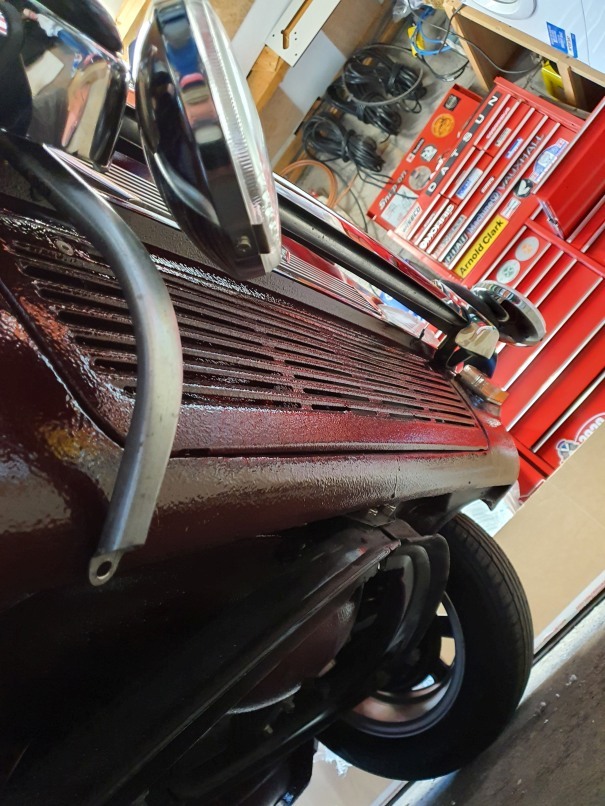

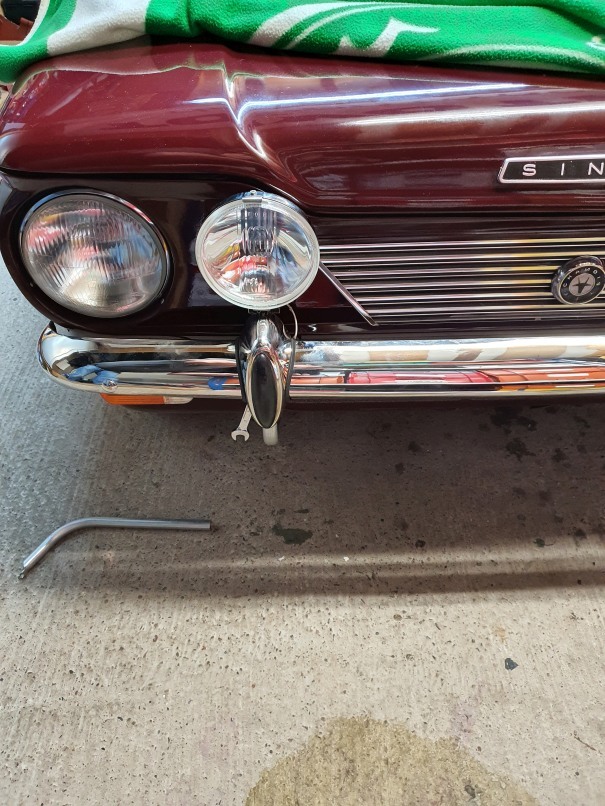

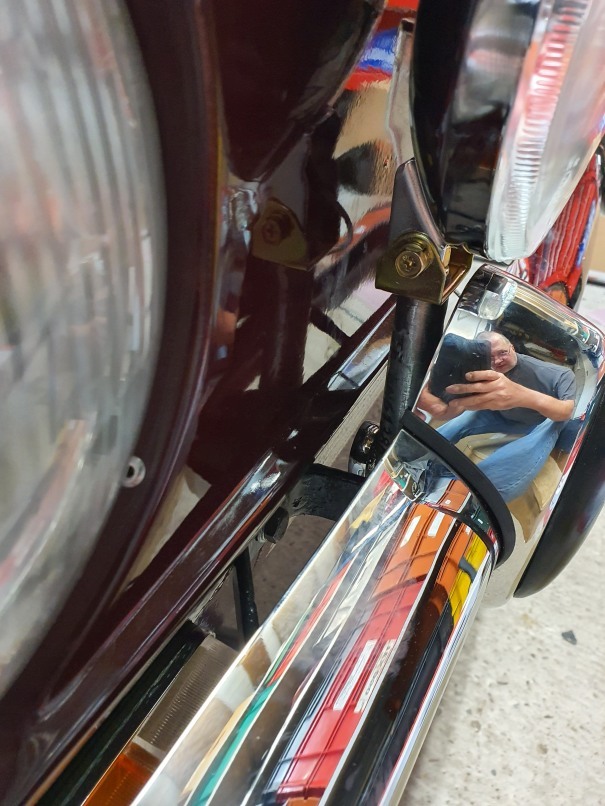

    And the end result, the lamp is really steady and hardly budges at all. position nearly as I would like but happy.

    Now just side two to make / mock up. then take all apart again to coat/paint.

    Click image for larger version  Name:	20201026_170111.jpg Views:	0 Size:	131.2 KB ID:	10895Click image for larger version  Name:	20201026_170342.jpg Views:	0 Size:	167.1 KB ID:	10896

    It is surpring the level of stability added by the bar down to the valance. !


    Certainly looks a lot better than just on the bumper as it was before

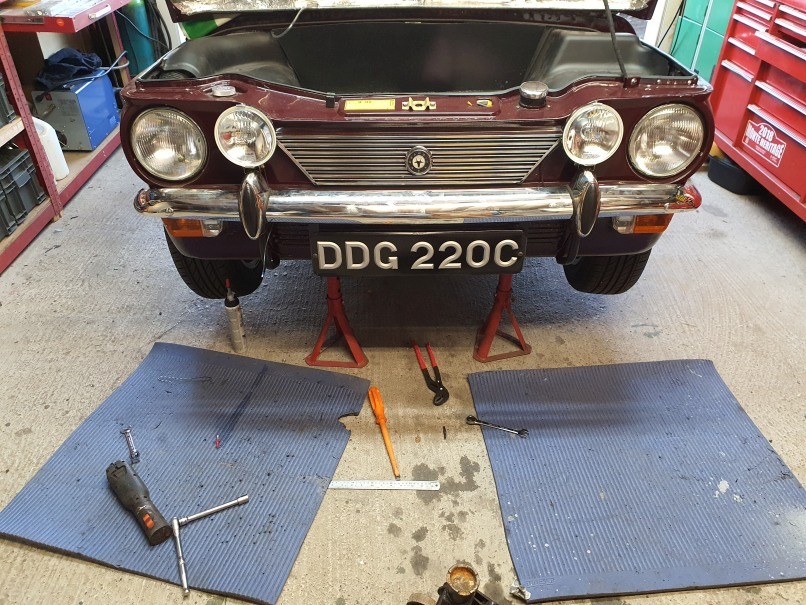

    Click image for larger version  Name:	4624938923268572624_n.jpg Views:	0 Size:	200.9 KB ID:	10897









    Last edited by John A. Ross; 26 October 2020, 07:52 PM.
    / John

  • #2

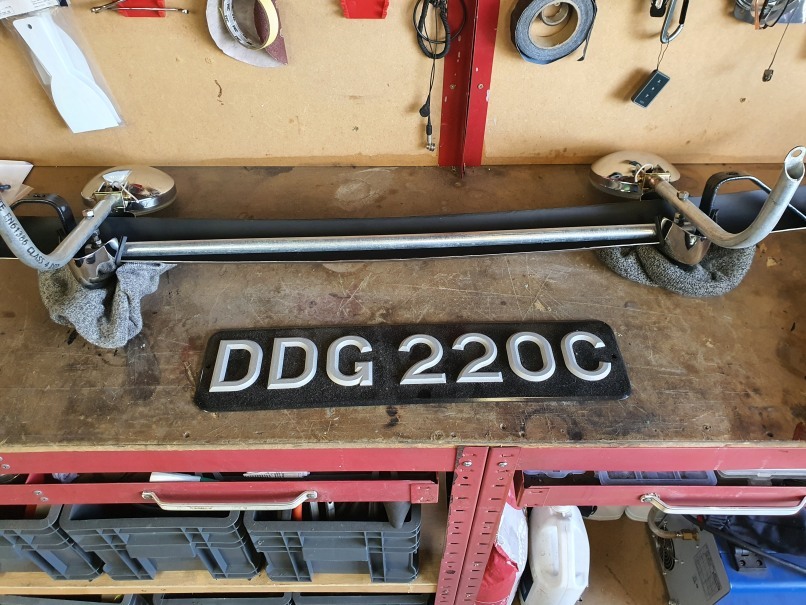

    And thats the other side done

    The spotlights no longer dangle like tree decorations

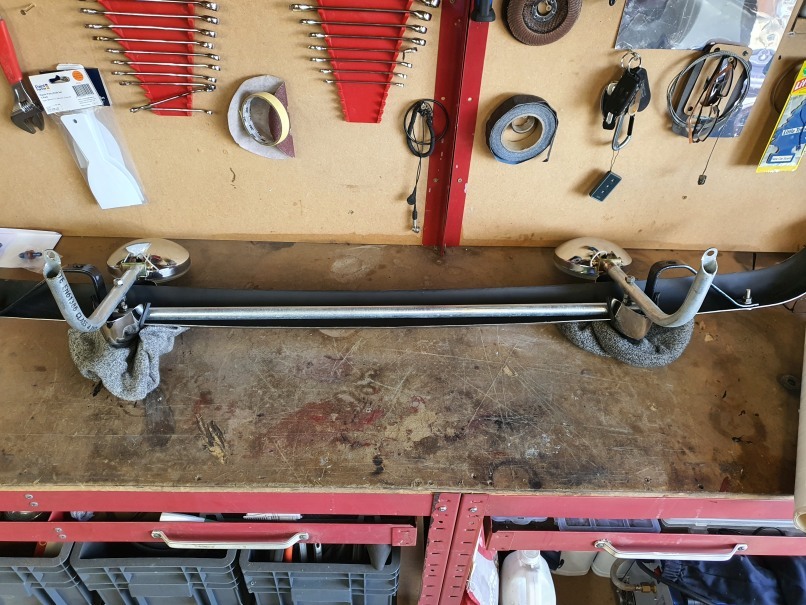

    Final positioning, the right hand mount needs the horizontal bar opened up a bit then some paint, was going to do body colour but might go for black short term.

    Lamps can adjust very well.

    Click image for larger version

Name:	20201026_180530.jpg
Views:	77
Size:	213.9 KB
ID:	10908
    Click image for larger version

Name:	20201026_180708.jpg
Views:	75
Size:	128.4 KB
ID:	10907
    Click image for larger version

Name:	20201026_180900.jpg
Views:	76
Size:	161.7 KB
ID:	10906

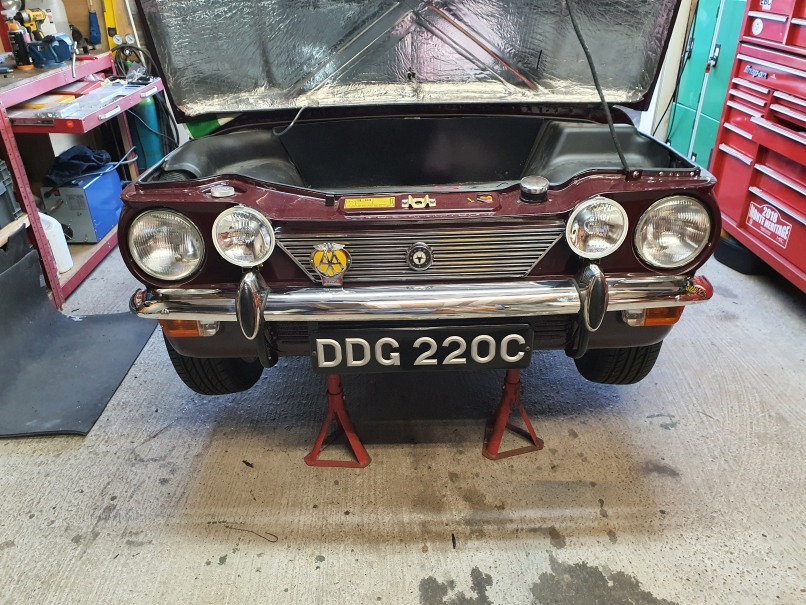

    And final result pending adjustment

    Click image for larger version

Name:	20201026_182453.jpg
Views:	78
Size:	9.8 KB
ID:	10905

    / John
