  • Save the rear hatch - rear hatch modifications on the cheap

    Lots of chatter on rear hatchs of late. Here I have attempted to recover what would have been a scrap rear hatch as best i can by using a mix of the cheapest materials I can find.

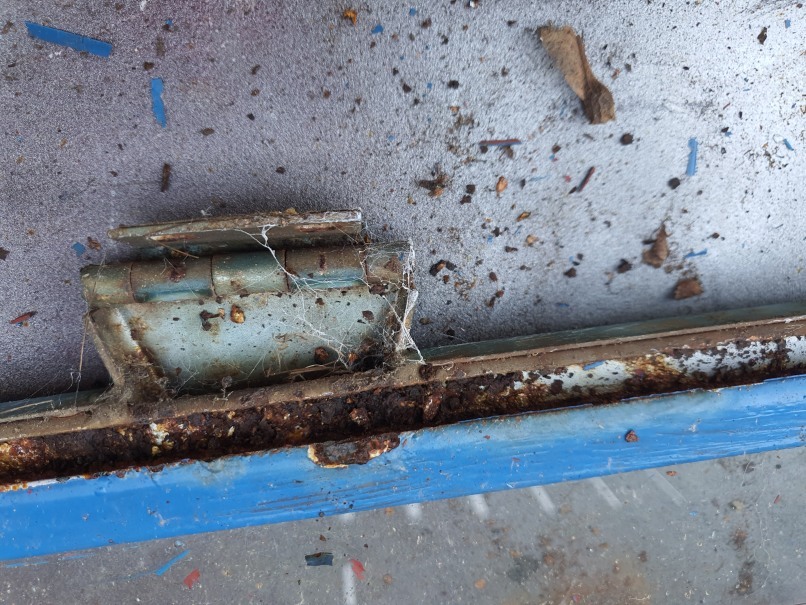

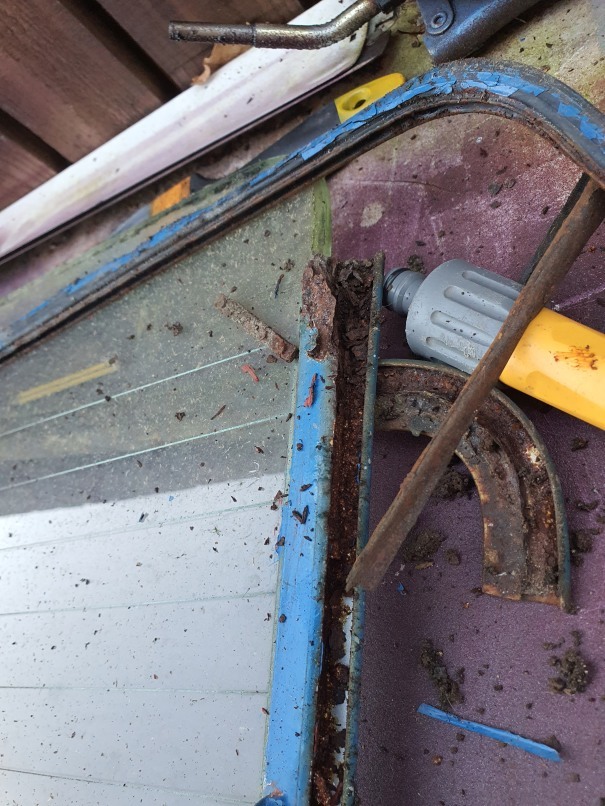

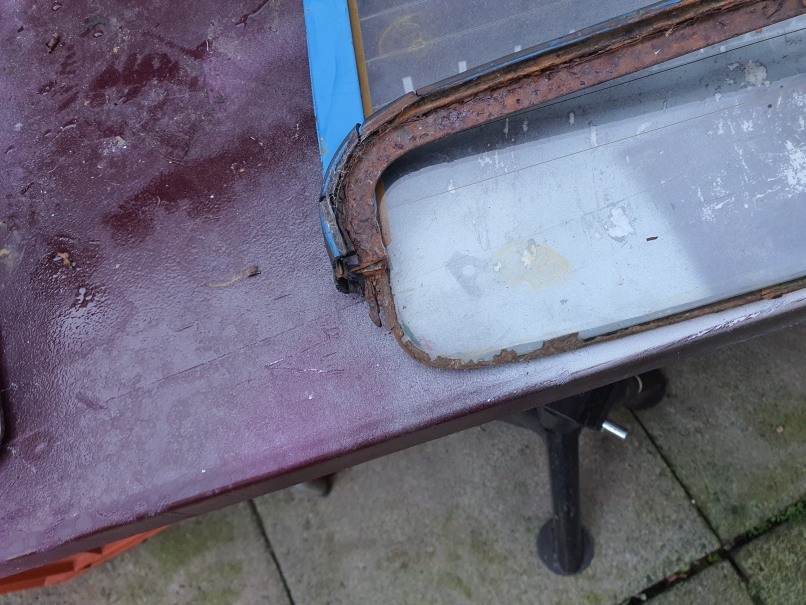

    As you can see this hatch is indeed a gonner, no easy way to repair the channels plus the rot is well under the seam you do not see.

    Click image for larger version

Name:	20220121_141222.jpg
Size:	138.1 KB
ID:	17796
    Click image for larger version

Name:	20220121_141433.jpg
Size:	188.1 KB
ID:	17795
    Click image for larger version

Name:	20220121_141228.jpg
Size:	147.9 KB
ID:	17794
    Click image for larger version

Name:	20220121_141335.jpg
Size:	108.1 KB
ID:	17793
    Click image for larger version

Name:	20220121_141231.jpg
Size:	139.3 KB
ID:	17792
    Click image for larger version

Name:	20220121_141424.jpg
Size:	163.6 KB
ID:	17791
    Click image for larger version

Name:	20220121_141320.jpg
Size:	137.7 KB
ID:	17790


    / John

  • #2

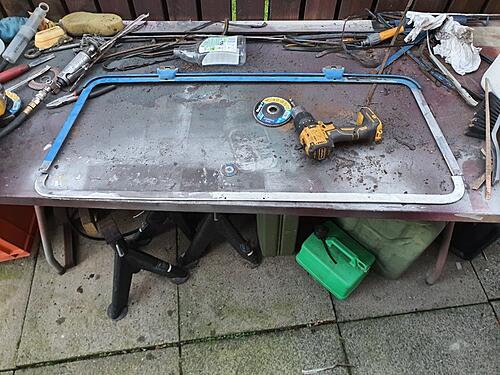

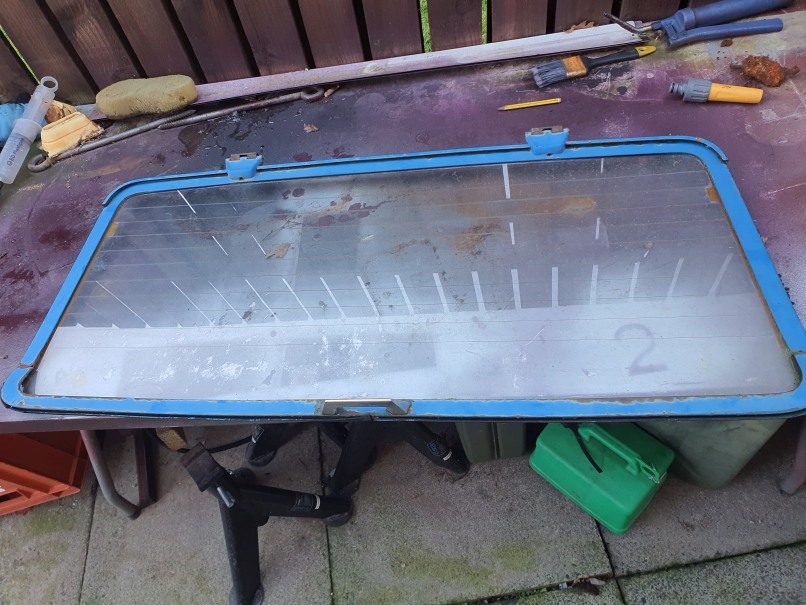

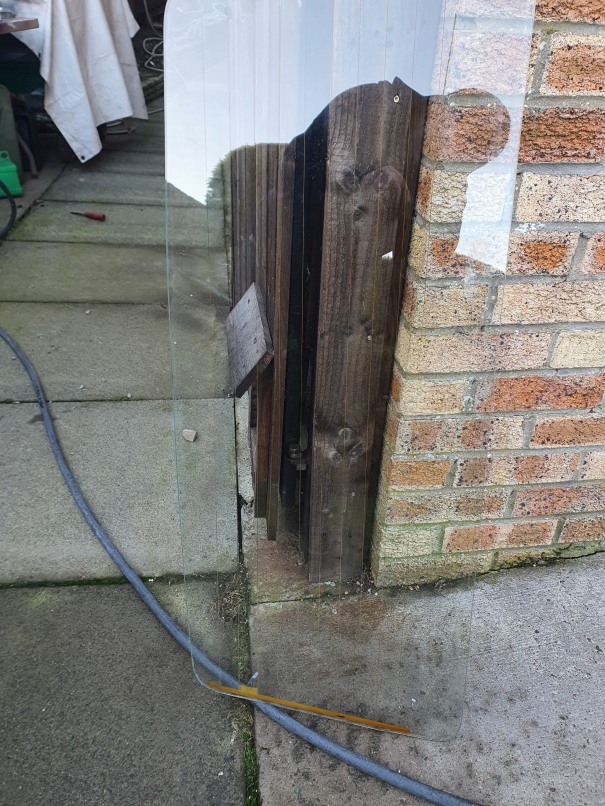

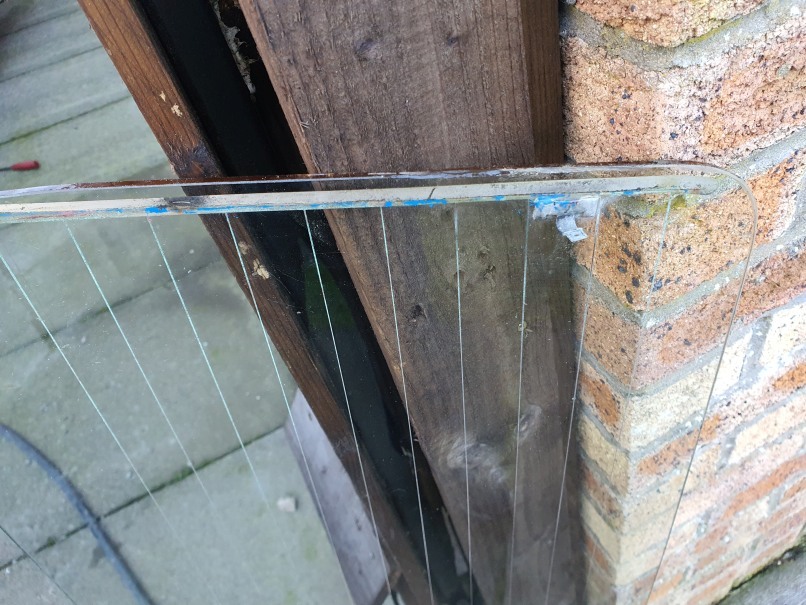

    Stage 1 complete, now I have some surplus heated glass

    I cut around the inner section of the frame with the cut off tool so I did not stress the frame oo much, these are suprisingly fragile

    Click image for larger version

Name:	20220121_143658.jpg
Size:	234.1 KB
ID:	17798
    Click image for larger version

Name:	20220121_143653.jpg
Size:	191.0 KB
ID:	17799
    Click image for larger version

Name:	20220121_143656.jpg
Size:	155.4 KB
ID:	17800
    Click image for larger version

Name:	20220121_143640.jpg
Size:	185.7 KB
ID:	17801


    I will stick the spare glass up for grabs to anyone local as it will need to be collected

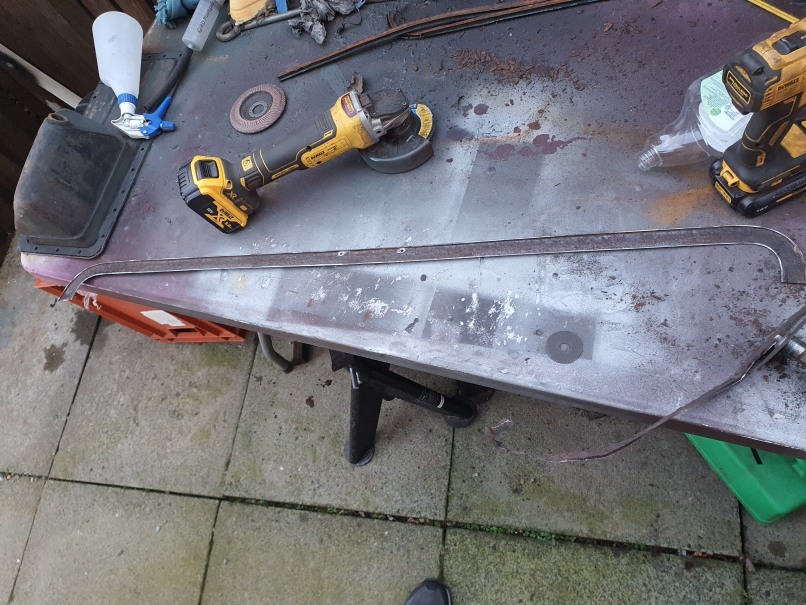

    The seam now needs removed, so back at it with the cutter

    Click image for larger version

Name:	20220121_145125.jpg
Size:	117.0 KB
ID:	17802

    Click image for larger version

Name:	20220121_145122.jpg
Size:	155.9 KB
ID:	17803

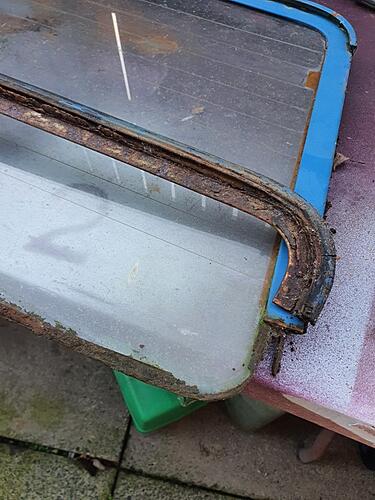

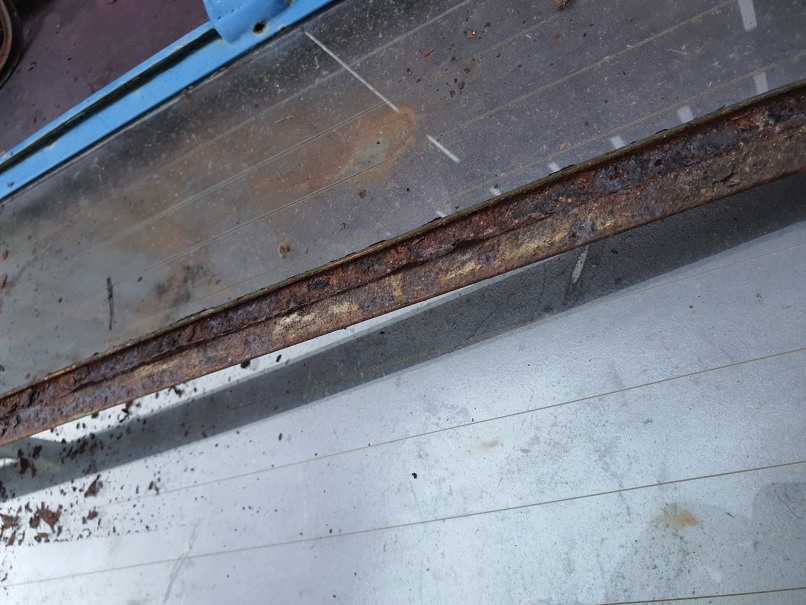

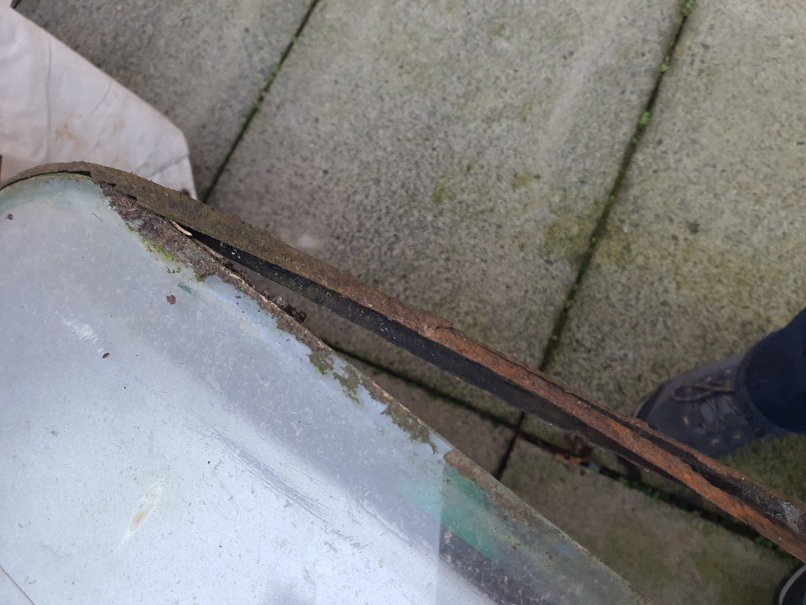

    You can really see here how rotten these seams actually are

    BUT

    We are only after the outer skin







    / John

    Comment


    • #3

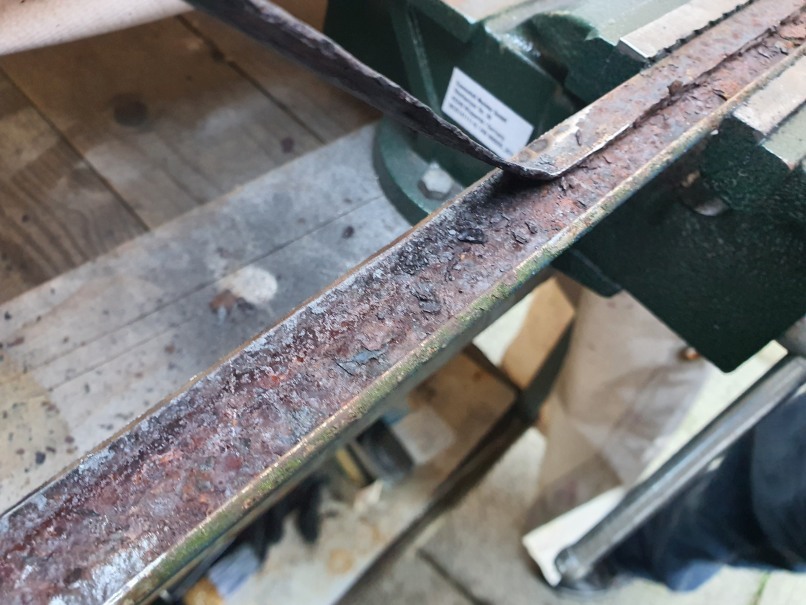

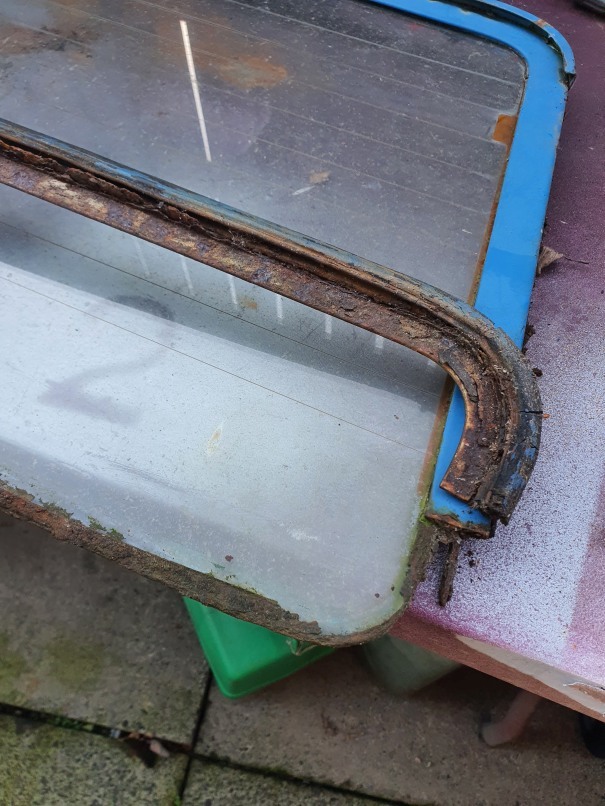

      WQith the seam removed you can see the obvious bend that the lower frame section wantt to take, even with the odd braze point in the fold it does want to bend out at the edges.

      The lip on these would need to be rolled so I suspect there was some tension already in the metal.


      AS can be seen one has to remove a lot of crust, most of thise only visible after you cut the fold / lip off



      Click image for larger version

Name:	20220121_151324.jpg
Size:	169.7 KB
ID:	17805
      Click image for larger version

Name:	20220121_150117.jpg
Size:	166.6 KB
ID:	17806
      Click image for larger version

Name:	20220121_151318.jpg
Size:	165.4 KB
ID:	17807




      / John

      Comment


      • #4

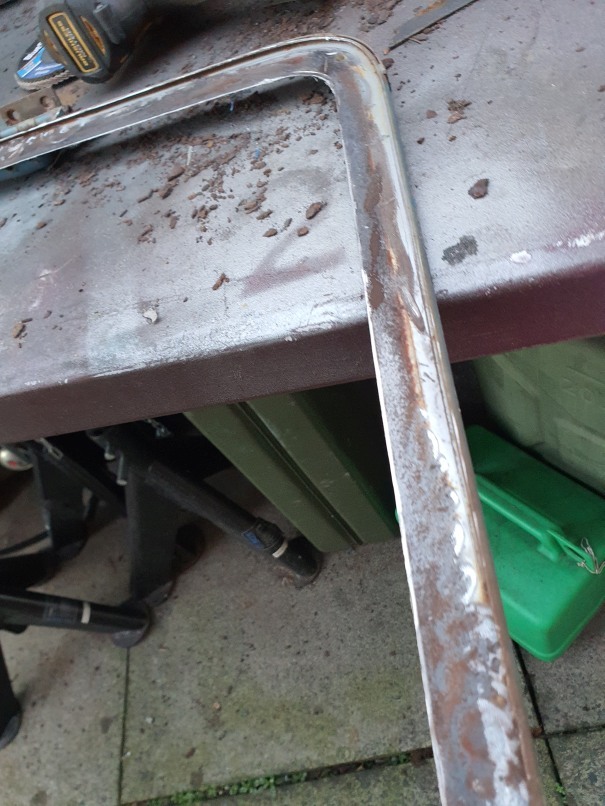

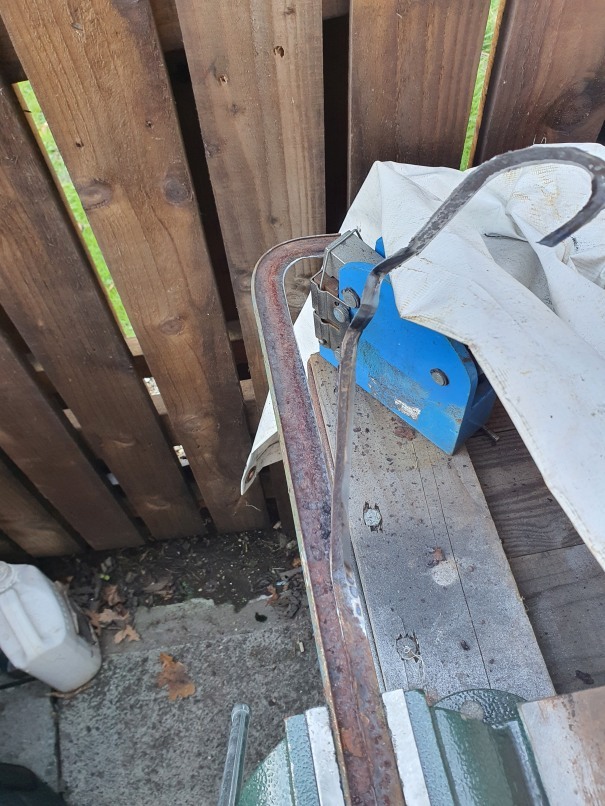

        And same again with the upper section, strip off the fold and lip to leave an outer skin only

        Again more brown stuff and crustier than a burned piece of toast


        As I have to work outside to do all this daylight, the cold and my aching hand called time on work for today, less than 2 hours on this so far.

        Click image for larger version

Name:	20220121_155813.jpg
Size:	129.0 KB
ID:	17809
        Click image for larger version

Name:	20220121_155808.jpg
Size:	191.3 KB
ID:	17810

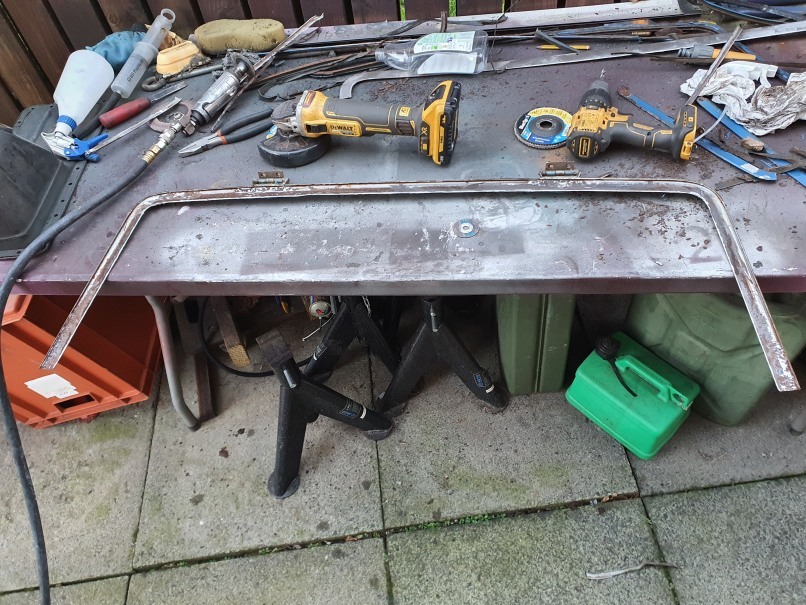

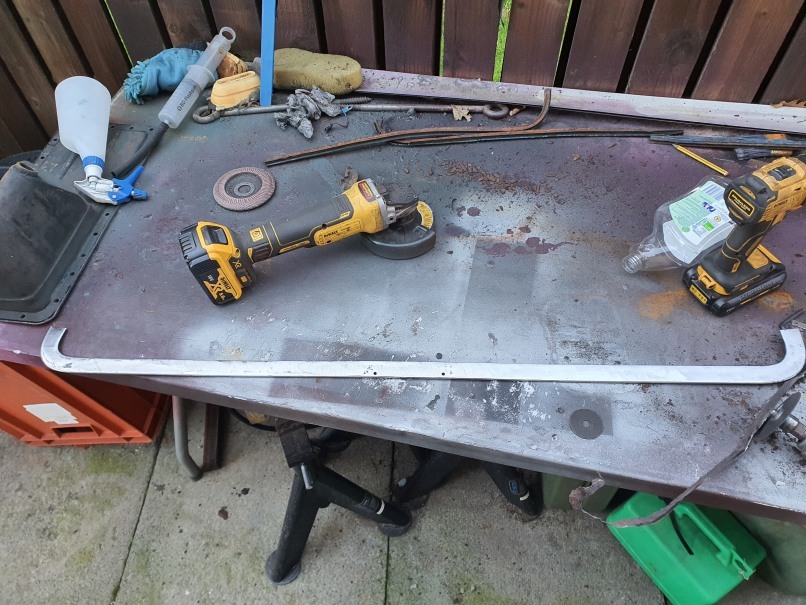

        And of course a quick preview of what is left

        Click image for larger version

Name:	20220121_155914.jpg
Size:	177.9 KB
ID:	17811


        Tomorrow I go in search of some 4 or 5mm acrylic sheet to add some "glass" back in.

        Ultimate plan would be to have proper glass made as the last prototype I made was too light and the clear plastic lacked the weight and rigidity to close properly


        End goal here is to have a working hatch for minimum investment








        / John

        Comment


        • #5
          Interesting to see how it was put together John and more so how your taking it apart as well..

          Comment


          • #6
            Originally posted by Colimp66 View Post
            Interesting to see how it was put together John and more so how your taking it apart as well..
            Col, I missed the pictures on some of the cutting but will model them up to show the cross section of the hatch, its actually a wonder of fabrication and i suspect fibnsihed by hand.

            No accidents this time
            / John

            Comment


            • #7
              More pics , very interesting concept

              Comment


              • #8
                More pics will follow Dave

                Its a fair weather project as I need to work outside while the sparks are flying


                I am off in search of clear sheet tomorrow. Ideally it should be glass, it really does need the weight but I will do the concept and then ask Phil Philgsmith if the club fancies a small run of real glass from Ricky Evans

                - J
                / John

                Comment


                • #9
                  John, looks good.

                  Comment


                  • #10
                    Cheers Alex

                    Will see how it turns out

                    Do you want this spare heated glass I have here as spare for the Calidonian ? Macrootes

                    John
                    Last edited by John A. Ross; 21 January 2022, 05:40 PM.
                    / John

                    Comment


                    • #11

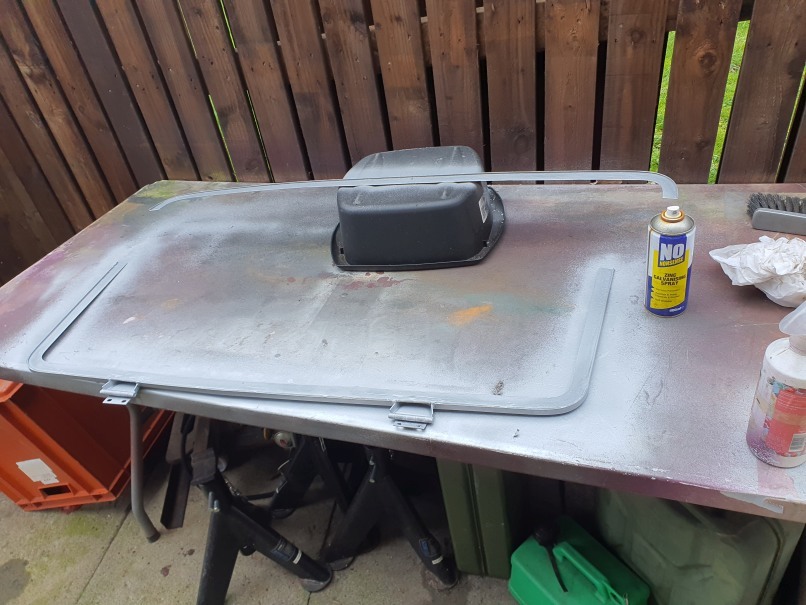

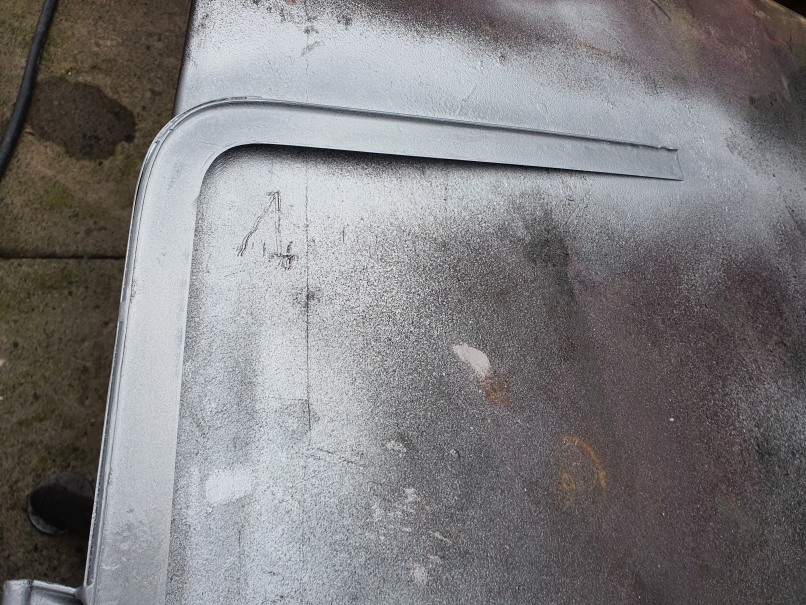

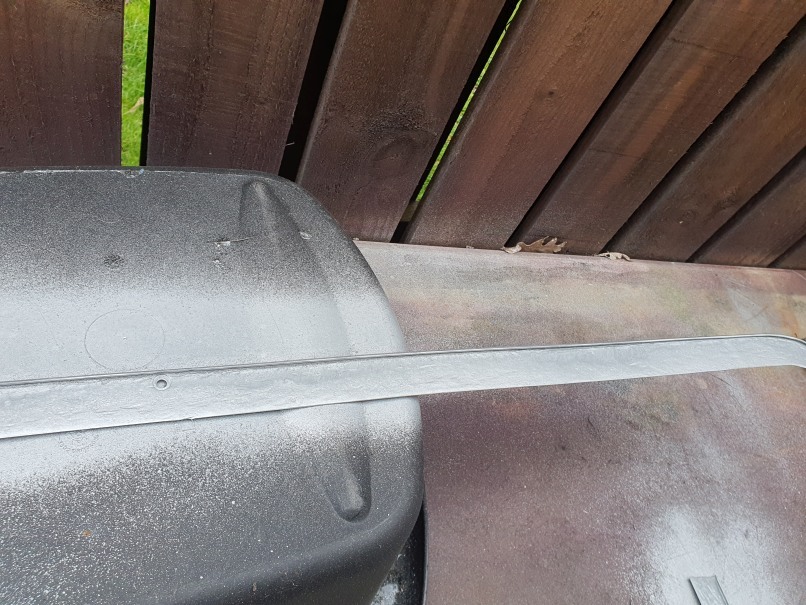

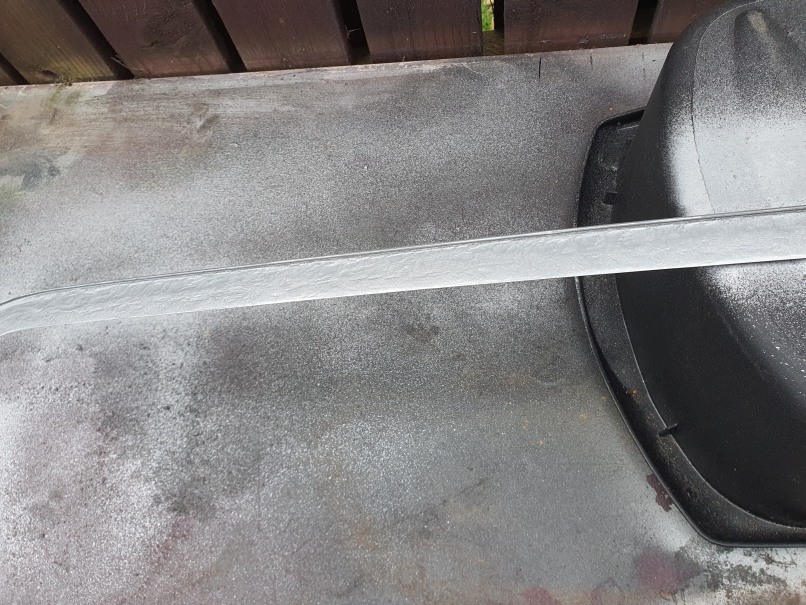

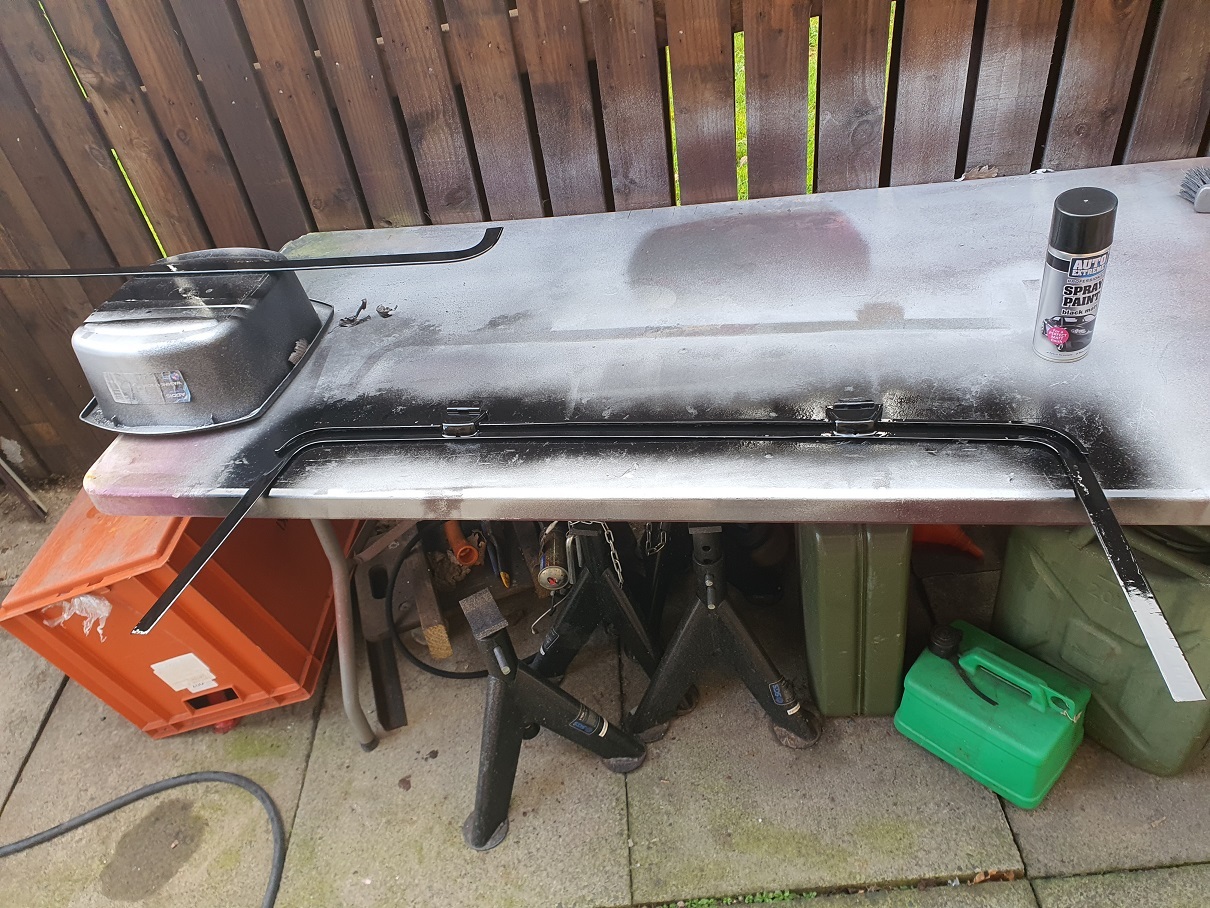

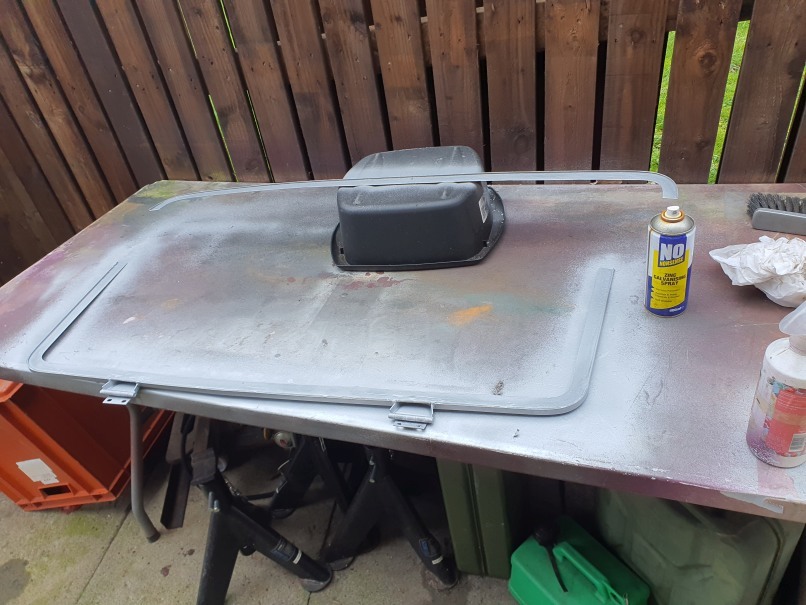

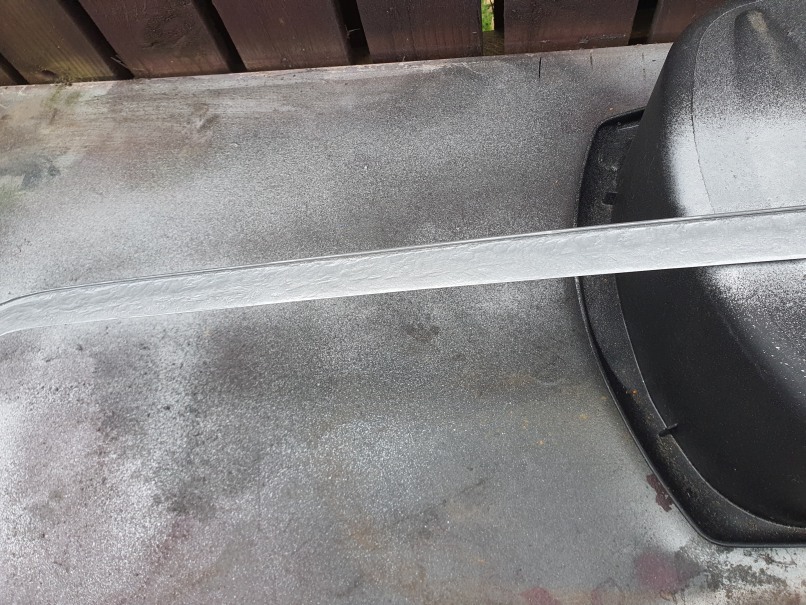

                      OK, another hour or so in prep, unforyunately my hand is not holding up well so I have skipped my usual attention to detail on prep and just left the fram at 120 grit

                      It is not getting an epoxy coat as the dew point is all wrong, so a coat of galv is all it is getting.

                      This stuff is suprisingly cheap and seems to do the deed, it has held up on the underside of the transit anyway !

                      Shocked to see though Screwfix now only sell the 400ml tin, so that would be £6.99 out my budget

                      Click image for larger version

Name:	20220122_131840.jpg
Size:	163.2 KB
ID:	17827
                      Click image for larger version

Name:	20220122_131837.jpg
Size:	177.1 KB
ID:	17828

                      Click image for larger version

Name:	20220122_131835.jpg
Size:	188.5 KB
ID:	17830

                      Click image for larger version

Name:	20220122_131829.jpg
Size:	120.3 KB
ID:	17831

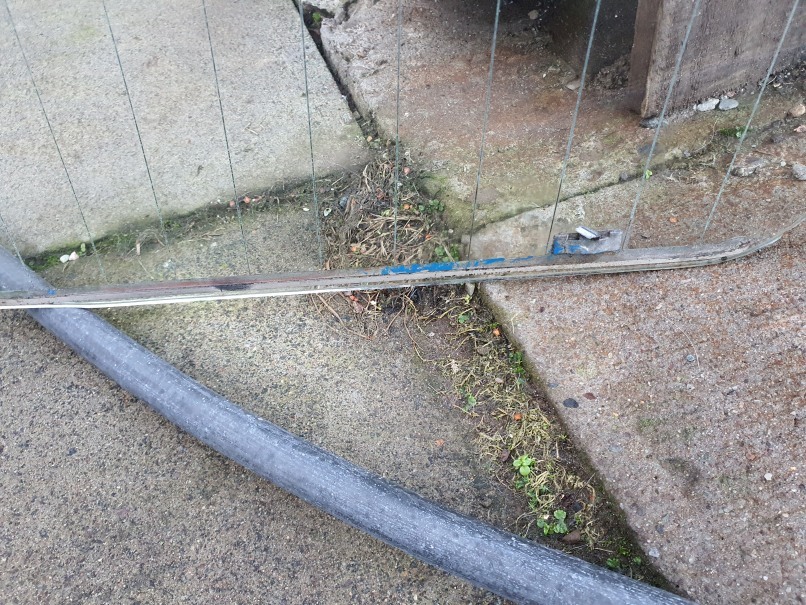

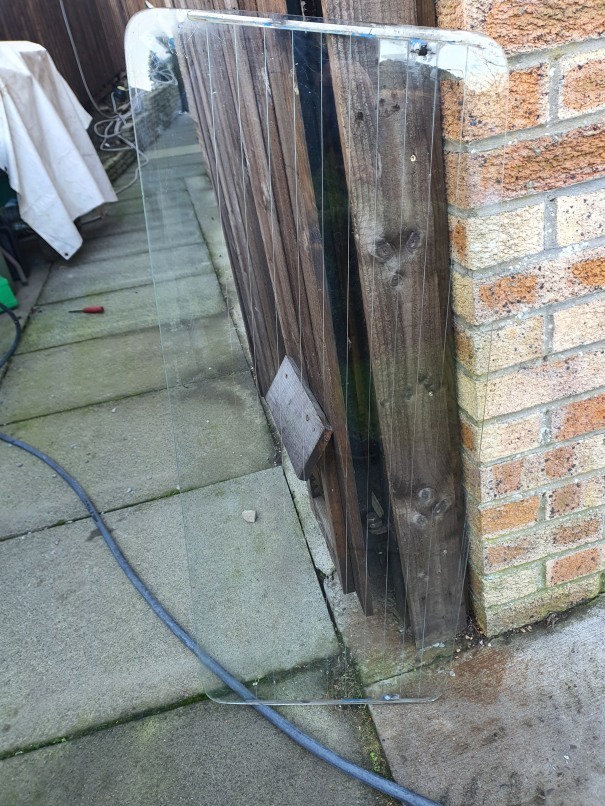

                      Sorry Alex, left that rear screen out back in fantastic condition and when I went around side of house today I had to seep it up.

                      It had been outside at least a year in the frame, guess unsupported the cold then sun killed it off lesson learned





                      Click image for larger version

Name:	20220122_121611.jpg
Size:	250.6 KB
ID:	17829


                      / John

                      Comment


                      • #12
                        And another day, small baby steps and anothe rhit to the budget, £2.99 from home bargains for some matt black paint

                        Boat really being pushed out here.

                        If I had took my normal prep steps I would have been a full day at this prepping every cravice, then epoxy coat/filler and sand down to at least 320 grit before prime and paint

                        These steps are being skipped in lieu of proof of principle.


                        So no long list of pictures today, everyone knows how to use a rattle can, I hope paint ist still wet which is why it is shiny, it will be matt when done.

                        I am limiting what I do on prep, rpime and paint as having to do everything outside it is cold, very much humid and totally the wrong place to paint, so it makes full prep a waste of time almost



                        Click image for larger version

Name:	20220122_141933.jpg
Size:	444.5 KB
ID:	17843
                        / John

                        Comment


                        • #13
                          And thius is what I was getting up to rather than waste daylight watching paint dry as I have no sofas here to sit on impman65 like Rob used to have

                          john
                          / John

                          Comment


                          • #14

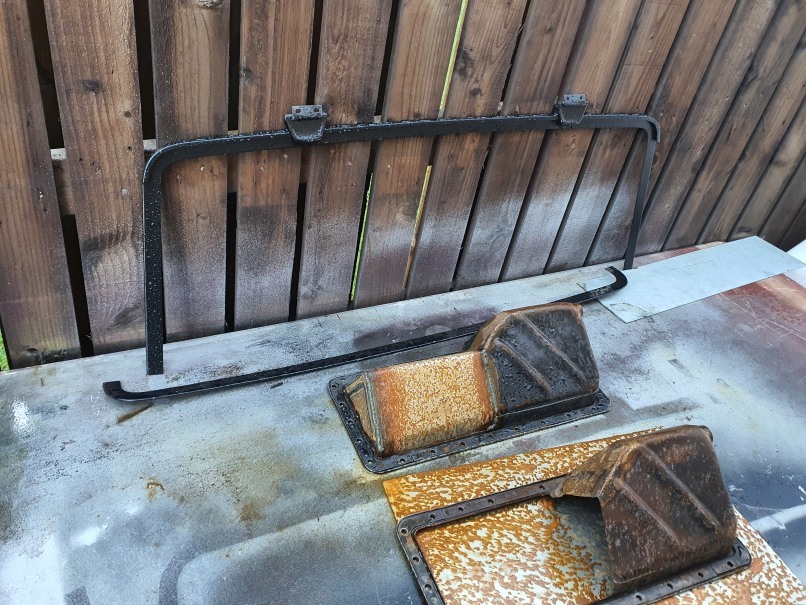

                            The outer fram has lasted well lying outside

                            Will get back to that in next few weeks. No rust seen through the cheap paint, still on budget

                            Click image for larger version

Name:	image_6599.jpg
Size:	191.8 KB
ID:	18087
                            / John

                            Comment


                            • #15
                              John,
                              Did you get any clear sheet for the window mock up?

                              I have enough spare 6mm polycarbonate/lexan whatever you want to call it from when I made up the windows for the Pest that will work for you. FOC.

                              Cheers
                              Col.
