Front check straps

[Dave Lane]

Il start with a real simple mod . For all you people running monte front springs its advisable to fit check straps so at full suspension drop the springs dont move and more importantly the spring locating collets on factory shocks dont fall out and your Imp suddenly goes unintentionally mage low

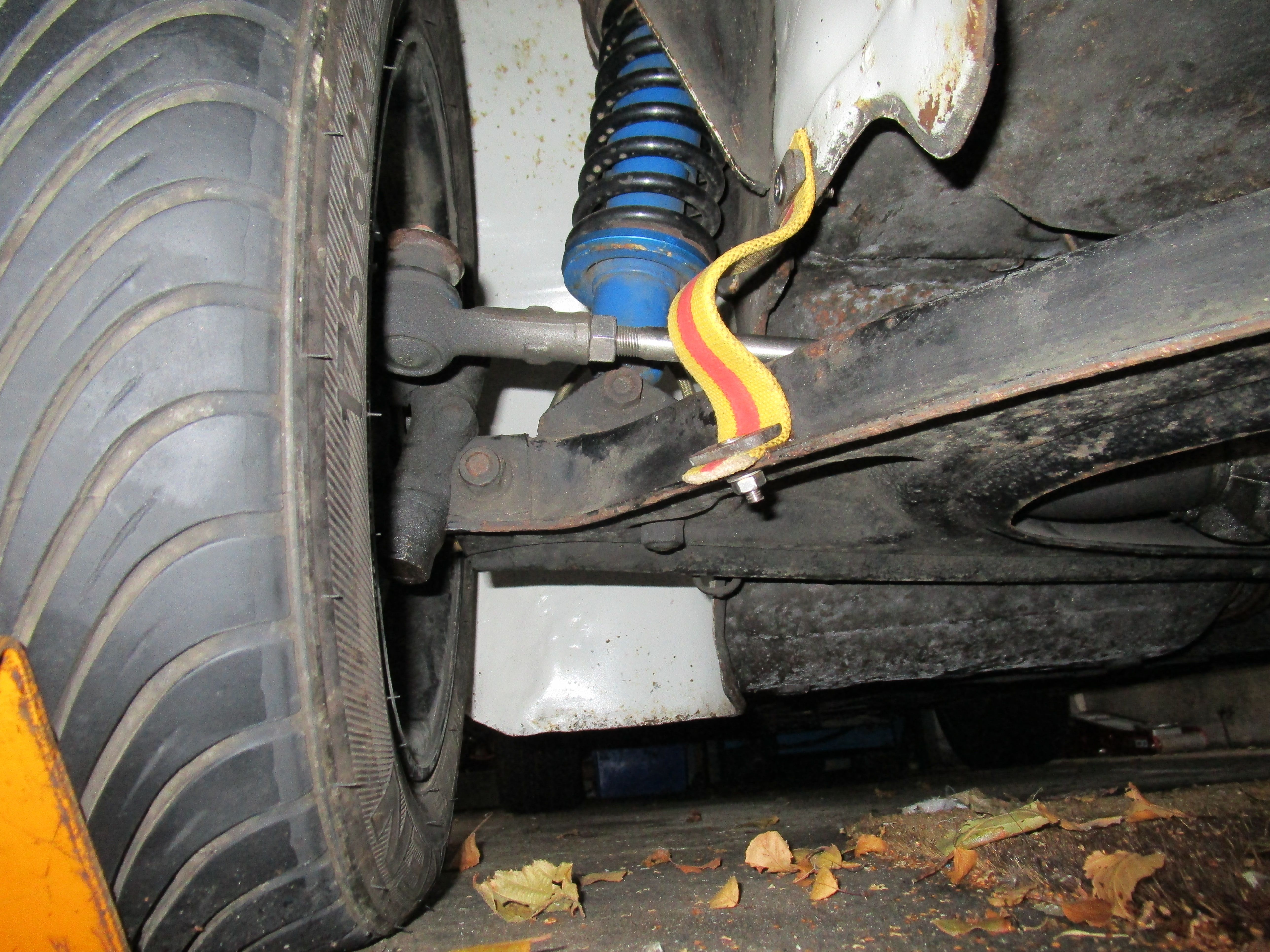

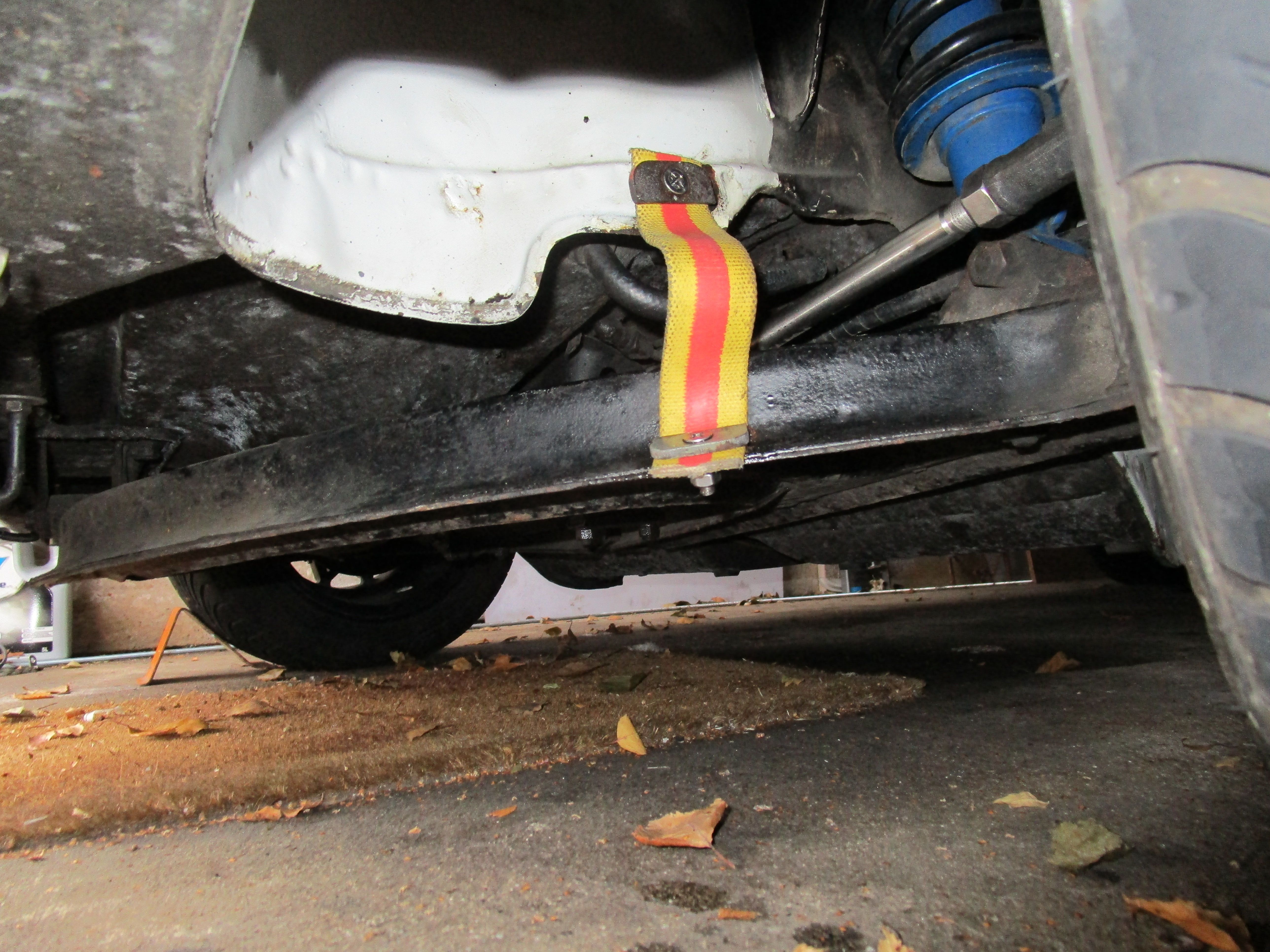

Fit as the images . Belt is known as balata belting - 1 1/2 inch wide is adequate

[PMCG]

Good advice, wouldn't be the first time I've seen the collets go on a field trip all by themselves.

[High_dan]

Keep up the good work Dave. Although you are giving me an increasing long list of jobs for my imp.

[Colimp66]

Dave,
This was another of your mods that I took note of when you first did this and then put into The Pest.
I have done the rears too but have no photos of them sorry.
Cheers
Col

[Yoeddynz]

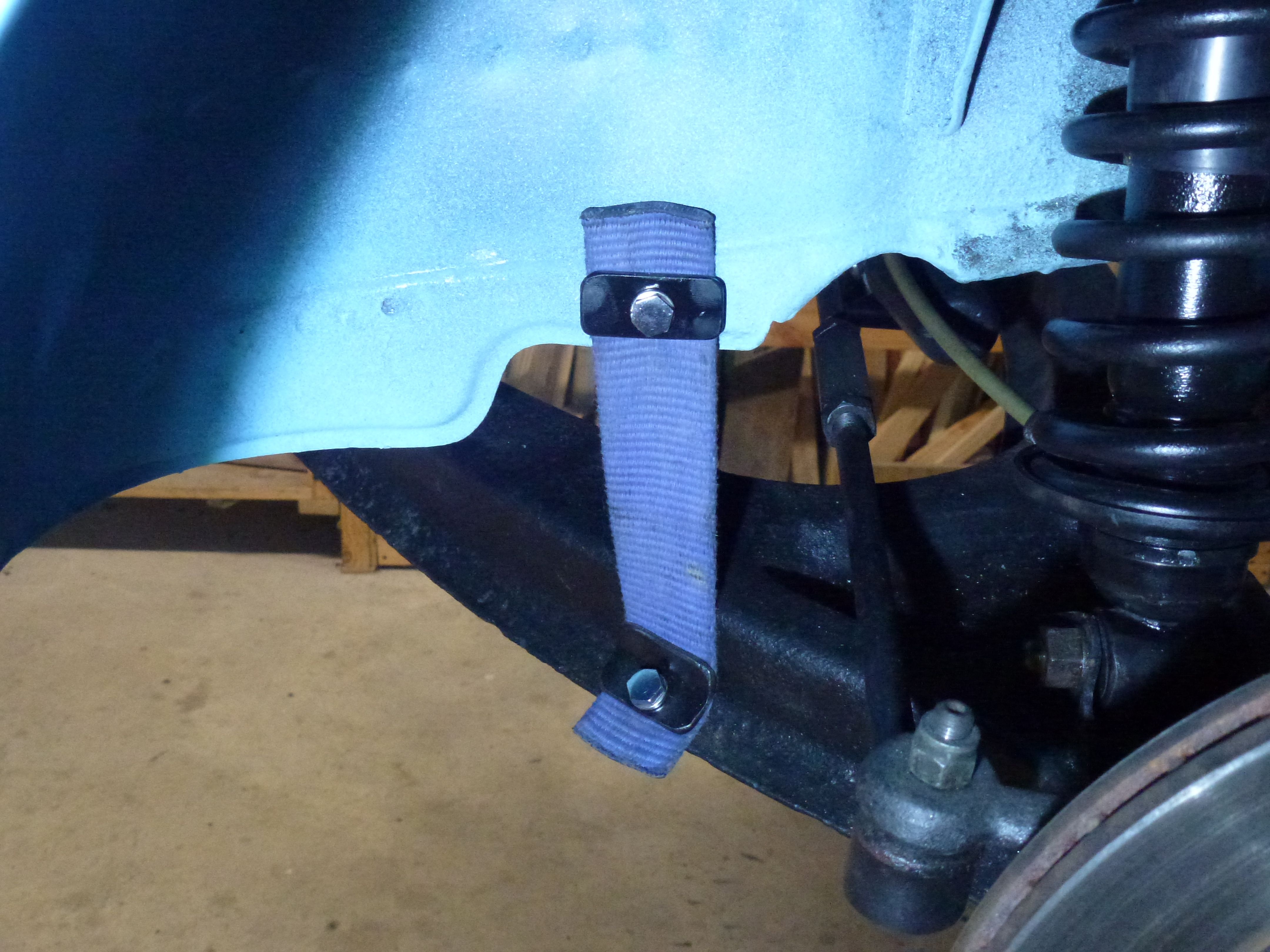

I've done a similar mod, pretty much copied from Dave's...
